RE934-02E

RE934-02E 多用途适配器 QFP48 和 QFN48适配电路板，用于 QFP44 和 QFn44（0.50 mm 节距） 环氧玻璃纤维 FR4 1.50 mm 双面 35 μm 铜 电镀通孔 PTH 表面化学处理 镍/金 焊接停止掩膜 孔间隔 2.54 mm 底部外部切换选项，每个选项带 0603 SMD-Pads 一个引脚 可以直接安装电阻器或类似元件 ### 表面安装板

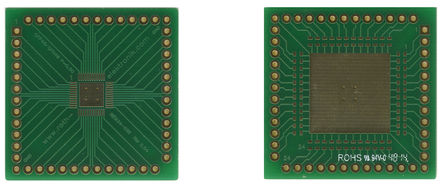

The is an IC Adapter with 2.54mm pitch spacing. It is an adaption circuit board for QFP44 and QFN44 with 0.50mm pitch. It has external switching options on the bottom side with 0603 SMD pads one pin each. The resistors or similar components can be mounted directly.

.

Double-sided 35µm copper Cu

.

Plated through holes PTH

.

Ni/Au surface chemical

.

Solder stop mask

.

1.50mm Epoxy fibre-glass
