ISL54405IVZ-T

CD/MP3高质量的立体声2:1复用器,可消除咔嗒声

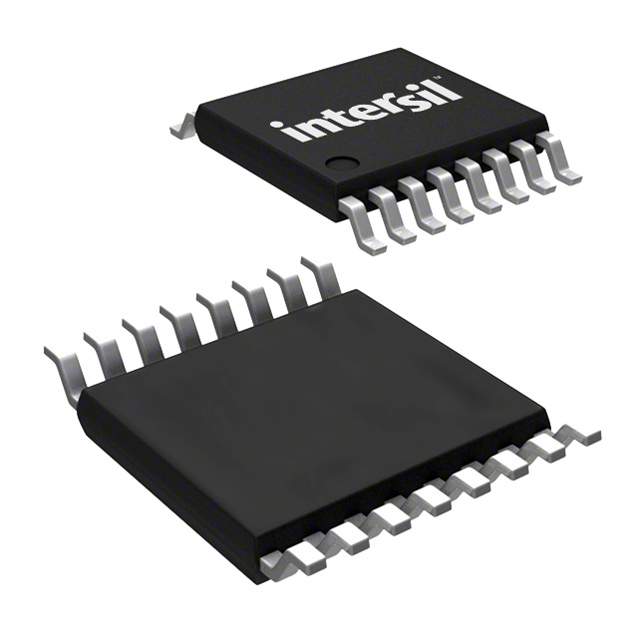

Audio Switch IC 2 Channel 16-TSSOP

得捷:
SPDT, 2 FUNC, CMOS, PDSO16

安富利:
The Intersil ISL54405 is a single supply, bidirectional, dual single-pole/double-throw SPDT ultra low distortion, high OFF-Isolation analog switch that can pass analog signals that are positive and negative with respect to ground. It is primarily targeted at consumer and professional audio switching applications such as computer sound cards and home theater products. The inputs can accommodate ground referenced signals up to 2VRMS while operating from a single 3.3V or 5V DC supply. The digital logic inputs are 1.8V logic-compatible when using a single 3.3V or 5V supply. It can be used in both AC or DC coupled ground referenced applications.The ISL54405 features a soft-switch feature and click/pop circuitry at each signal pin that eliminates clicks and pops associated with power-up/down conditions of the preceding amplifier outputs.With -106dB THD+N performance with a 2VRMS signal into 20kΩ load, superior signal muting, high PSRR and very flat frequency response, the ISL54405 meets the exacting requirements of consumer and professional audio engineers.The ISL54405 is available in 16 Ld TSSOP, 16 Ld 3mm x 3mm TQFN, and 16 Ld 2.6mm x 1.8mm µTQFN packages. It’s specified for operation over the -40°C to +85°C temperature range.

Chip1Stop:
Analog Multiplexer Dual 2:1 16-Pin TSSOP T/R

儒卓力:
**2xSPDT 2:1MUX TSSOP16 SMD **

罗切斯特:
Analog Multiplexer Dual 2:1 16-Pin TSSOP T/R

力源芯城:
CD/MP3高质量的立体声2:1复用器,可消除咔嗒声

Win Source:
IC MUX STEREO 2:1 CD/MP3 16TSSOP
