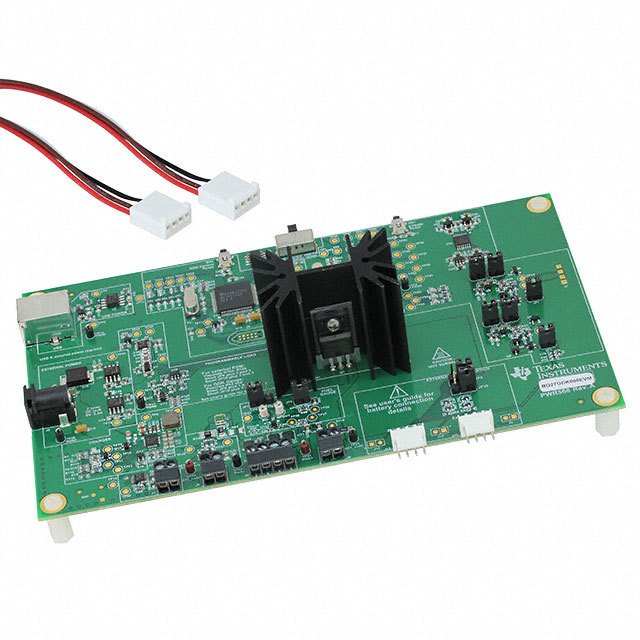

BQ27GDK000EVM

Evaluation Module

The Gauge Development Kit GDK is a complete evaluation system for any single-cell fuel gauge developed by Texas Instruments Incorporated.  The GDK is a single printed circuit board PCB equipped with a programmable load, programmable charger, an optional on-board fuel gauge and an integrated EV2400 for PC interaction via Battery Management Studio.  A USB PC cable, 6 V 2.5 A DC Jack or equivalent power supply connection and the latest version of Battery Management Studio is needed when using the GDK.

Once the GDK is connected to a PC via USB cable, Battery Management Studio will allow the user to do the following:
