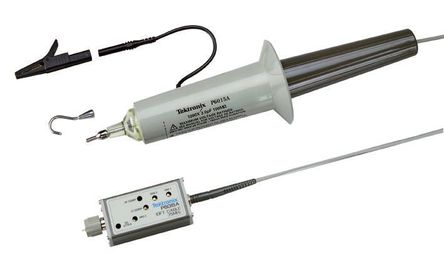

P6015A

Tektronix TDS 1000B 系列Tektronix 探头，用于 TDS1000 系列：TCP303 和 TCP305 电流探头，适用于测量交流或直流；P6015A 高电压无源探头。 ### TDS 1000 和 2000 系列### TDS1000/2000

The from is a 75MHz industry standard passive high voltage probe. It is a safe high voltage probe solutions for ground referenced voltage testing. This probe is used for heavy duty high performance measurements. It can measure DC voltages up to 20KVrms and pulses up to 40KV peak 100ms duration. The 75MHz bandwidth enables users to capture fast and high voltage signals. The P6015A uses an environmentally safe silicone compound for dielectric and never needs refilling. It features small compensation box that fits on adjacent amplifier inputs and readout option for use with most Tektronix digital scopes. With readout option, the displayed voltage amplitude values will be tactual signal value rather than understated by a factor of 1000.

.

DC to 75MHz bandwidth

.

1000X attenuation

.

Nominal length is 3m

.

Rise time is typically 4ns

.

Compensation range 7pf to 49pf

.

UL3111-1, EN61010-1, IEC61010-2-031, CSA1010.1, CSA1010.2.031 approved
