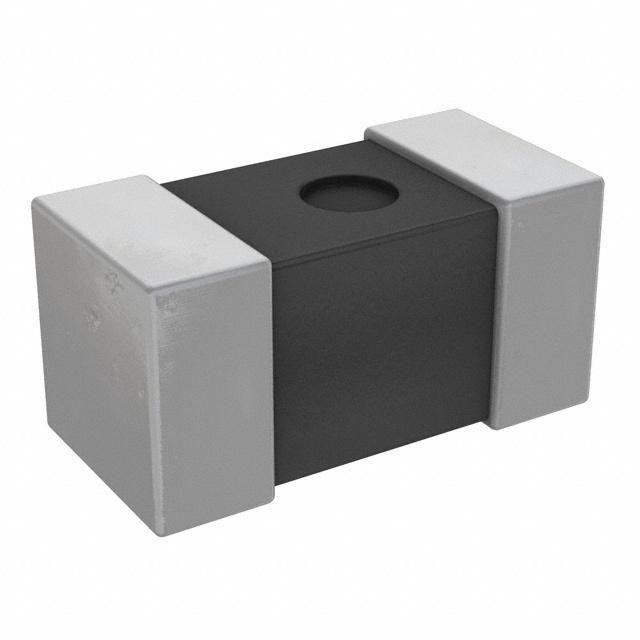

LQP03TN4N3J02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

固定器

得捷:
FIXED IND 4.3NH 350MA 400MOHM SM

立创商城:
4.3nH ±5% 400mΩ

艾睿:
This rf chip LQP03TN4N3J02D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 400m Ohm. This device is made with thin film technology. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. It has a tolerance of 5%. It has an inductance of 4.3n H. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 5.3G Hz.

安富利:
Ind RF Chip Thin Film 4.3nH 5% 500MHz 14Q-Factor 350mA 0201 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 4.3nH 5% 500MHz 14Q-Factor 350mA 400mOhm DCR 0201 T/R

Verical:
Inductor RF Chip Unshielded Thin Film 0.0043uH 5% 500MHz 14Q-Factor Non Magnetic 0.35A 0.4Ohm DCR 0201 T/R
