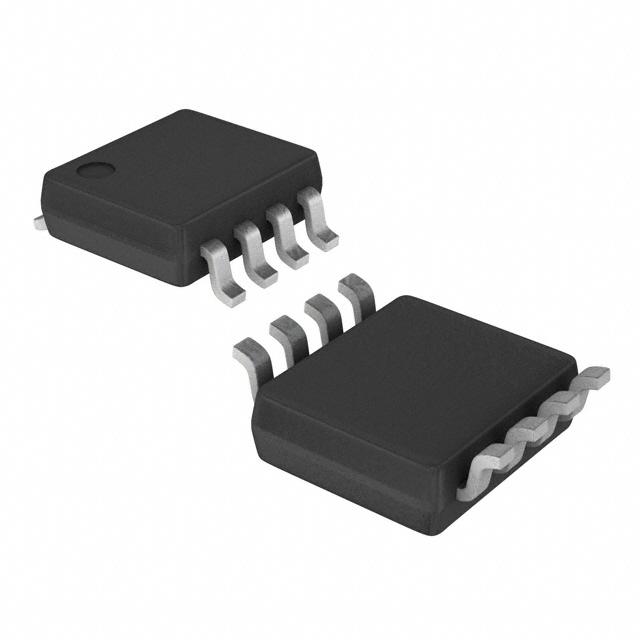

SN74LVC1G123YEPR

带施密特触发器输入单重触发单稳多谐振荡器 SINGLE RETRIGGERABLE MONOSTABLE MULTIVIBRATOR WITH SCHMITT TRIGGER INPUTS

DESCRIPON/ORDERING INFORMATION

The SN74LVC1G123 is a single retriggerable monostable multivibrator designed for 1.65-V to 5.5-V VCC operation.

FEATURES

• Available in the Texas Instruments NanoStar™ and NanoFree™ Packages

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Max tpd of 8 ns at 3.3 V

• Supports Mixed-Mode Voltage Operation on All Ports

• Schmitt-Trigger Circuitry on A and B Inputs for Slow Input Transition Rates

• Edge Triggered From Active-High or Active-Low Gated Logic Inputs

• Retriggerable for Very Long Output Pulses, up to 100% Duty Cycle

• Overriding Clear Terminates Output Pulse

• Glitch-Free Power-Up Reset on Outputs

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101
