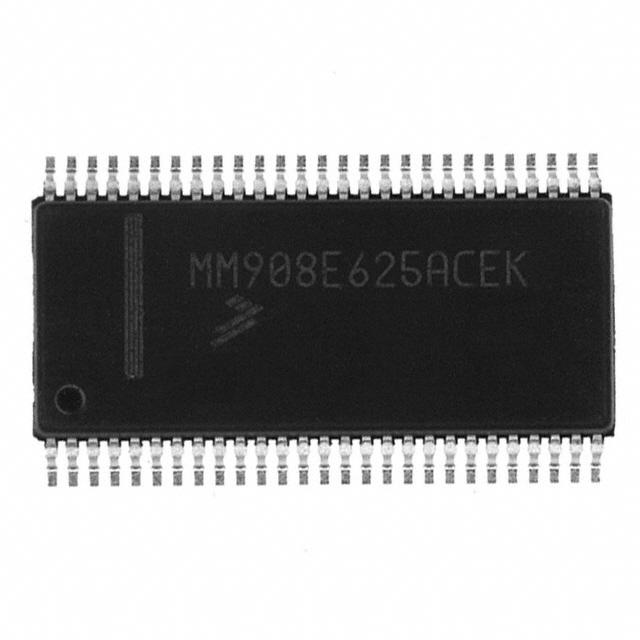

MM908E625ACEK

马达/运动/点火控制器和驱动器 Quad Half H-Bridge with P/S, HC08, LIN

The 908E625 is an integrated single-package solution including a high-performance HC08 microcontroller with a SMARTMOS™ analog control IC. The HC08 includes Flash Memory, a timer, Enhanced Serial Communications Interface ESCI, an Analog-to-Digital Converter ADC, Serial Peripheral Interface SPI only internal, and an Internal Clock Generator ICG module. The analog control die provides fully protected H-Bridge/high-side outputs, voltage regulator, autonomous watchdog with cyclic wake-up, and Local Interconnect Network LIN physical layer.

Features

• High-Performance M68HC908EY16 Core

• 16K Bytes of On-Chip Flash Memory & 512 Bytes of RAM

• Internal Clock Generation Module

• Two 16-bit, 2-Channel Timers

• 10-Bit Analog-to-Digital Converter

• LIN Physical Layer

• Autonomous Watchdog with Cyclic Wakeup

• Three Two-Pin Hall-Effect Sensor Input Ports

• One Analog Input with Switchable Current Source

• Four Low RDSON Half-Bridge Outputs

• One Low RDSON High-Side Output

• 13 Micro Controller I/Os

• Pb-free packaging designated by suffix code EK

MM908E625ACEK PDF数据文档
图片 型号 厂商 下载
MM908E625ACEK Freescale 飞思卡尔
MM908E621ACPEK Freescale 飞思卡尔

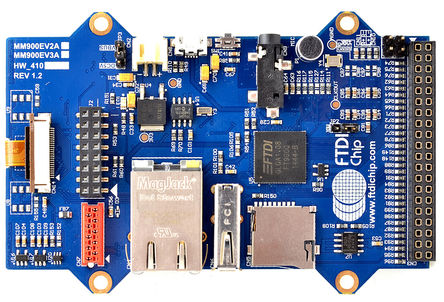

MM900EV3A FTDI Chip 飞特帝亚
MM908E626AVPEK Freescale 飞思卡尔
MM908E626AVPEKR2 Freescale 飞思卡尔
MM908E621ACPEKR2 Freescale 飞思卡尔
MM908E621ACDWBR2 Freescale 飞思卡尔
MM908E622ACEK Freescale 飞思卡尔

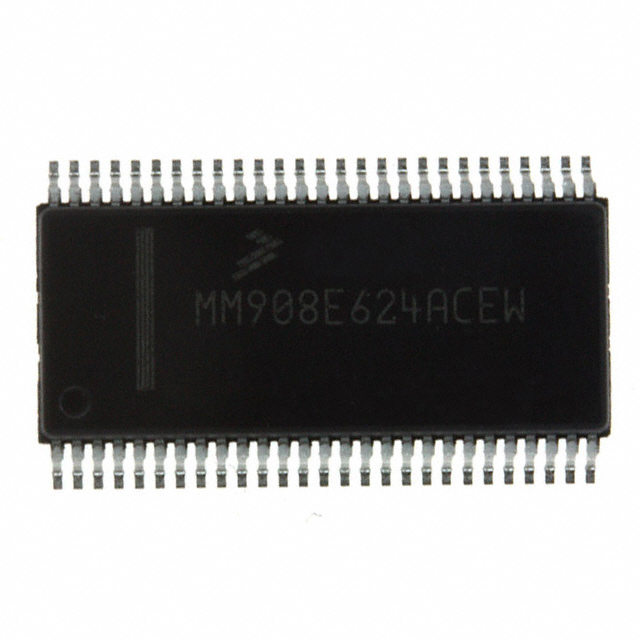

MM908E624ACPEWR2 Freescale 飞思卡尔

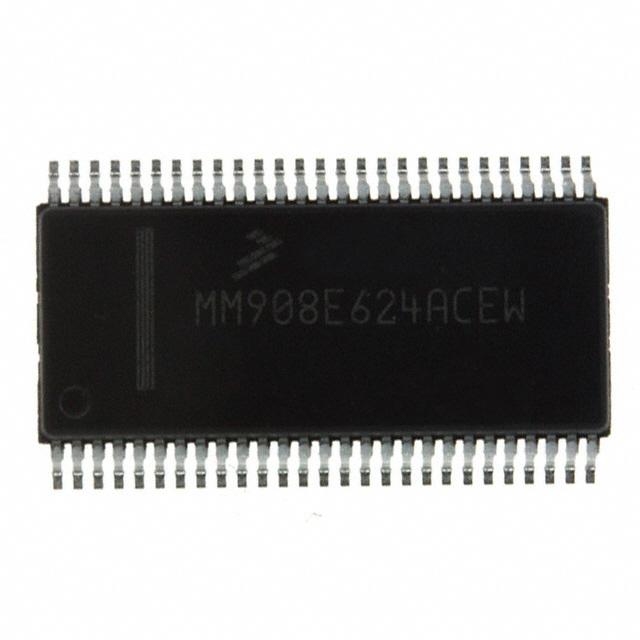

MM908E624ACEW Freescale 飞思卡尔
MM908E626AVEK Freescale 飞思卡尔
