SMM02070C1000FBP00

VISHAY  SMM02070C1000FBP00  电阻, 金属电极无限面MELF 表面贴装, 100 ohm, 350 V, 400 mW, ± 1%, SMM0207 Series, 薄膜 新

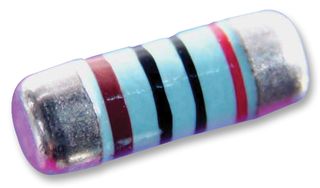

The Vishay SMM0207 series are automotive grade thin film MELF resistors. The advanced metal film technology thin film MELF resistors are perfect choice for most fields of professional electronics where reliability and stability are of major concern at higher power rating and higher operating voltage. The resistance range includes E96, E24 and E192 decade values from 0.16ohm to 10Mohm and these resistors are best in class pulse load capability. Typical application includes telecommunication and medical equipment.

.

DIN 0207 standard size

.

Neutral version available

.

Rated dissipation of 1W

.

Available in ±5%, ±1%, ±0.5%, ±0.25% and ±0.1% resistance tolerance

.

Zero ohm jumper are available

.

Intrinsic sulphur resistance

.

Operating voltage of 350V

.

Automotive grade AEC-Q200 qualified

.

±100ppm/K, ±50ppm/K, ±25ppm/K, ±15ppm/K TCR values available

.

Operating temperature of -55°C to +155°C
