TC7WH00FK

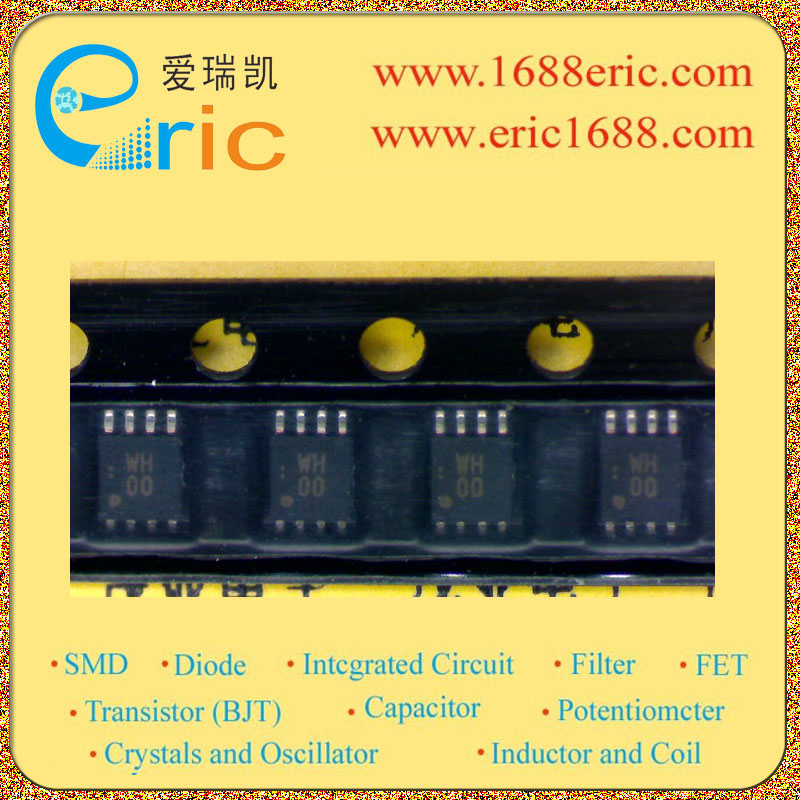

IC 与非门 TC7WH00FK US8 marking/标记 WH00

逻辑类型Logic Type| 与非门 NAND Gate \---|--- 电路数Number of Circuits| 2 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~5.5V 静态电流IqCurrent - Quiescent Max| 2µA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 0.5v 高逻辑电平Logic Level - High| 1.5v 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7.5ns @ 4.5V ~ 5.5V，50pF Description & Applications| Dual 2-Input NAND Gate ;• High speed operation : tpd = 3.7ns typ. at VCC = 5 V, CL = 15pF • Low power dissipation : ICC = 2μA max at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC min • Operating voltage range : VCC = 2 to 5.5 V • Balanced propagation delays : tpLH ≒ tpHL • 5.5-V Tolerant inputs • Identical pin assignment and function with TC7W00 描述与应用| 双2输入与非门;•高速运行：TPD =3.7ns（典型值） 在VCC = 5 V，CL=15PF •低功耗：ICC=2μA（最大值）在大= 25°C •高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） •工作电压范围：VCC=2至5.5 V •平衡传输时延：TPLH≒TPHL •5.5-V容错输入 •相同的引脚分配和功能TC7W00
