TSW-126-14-S-D

Conn Unshrouded Header HDR 52POS 2.54mm Solder ST Thru-Hole

Connector Header Through Hole 52 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 52POS 2.54MM

艾睿:

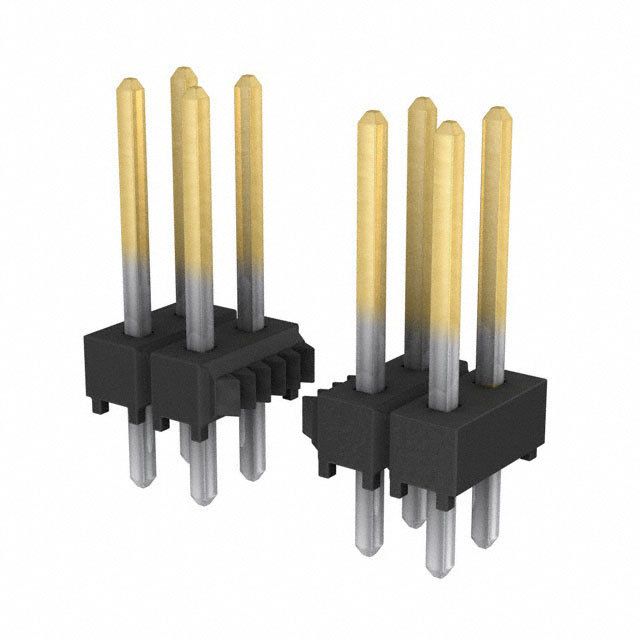

Use this unshrouded TSW-126-14-S-D connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 52 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 66.04 mm long, 10.67 mm tall and 5.08 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. TSW-126-14-S-D is housed in black polyester.

Newark:
# SAMTEC  TSW-126-14-S-D  .025 Sq. Terminal Strips
