CXA2006Q

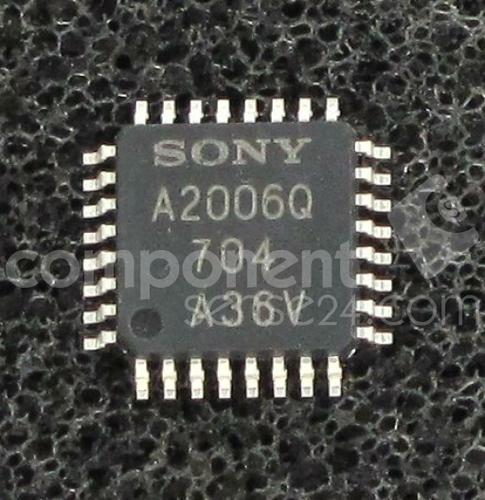

Digital CCD Camera Head Amplifier 32Pin PQFP

Description

The is a bipolar IC developed as a head amplifier for digital CCD cameras. This IC provides the following functions: correlated double sampling, AGC for the CCD signal, GCA for the low band chroma signal, AMP for high-band chroma and line signals, A/D sample and hold, blanking, A/D reference voltage, and an output driver.

Features

• High sensitivity made possible by a high-gain AGC amplifier

• Blanking function provided for the purpose of calibrating the CCD output signal black level

• Regulator output pin provided for A/D converter reference voltage

• Built-in GCA and AMP for amplifying video signals chroma and line signals from external sources

• Built-in sample-and-hold circuits for camera signals and for video signals required by external A/D

converters

Applications

Digital CCD cameras
