CD85N12-25-B

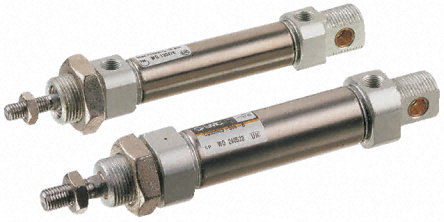

SMC C85 气缸SMC C85 气缸符合 ISO 6432 和 CETOP RP52P 标准，提供 100% 安装重复性精确度，包含耐磨性密封和一个可更换活塞杆密封。 气缸耐腐蚀，套管和活塞杆由不锈钢制成，有双折弯阳极氧化铝端盖，使用寿命超长。 双折弯端盖有一个空气密封。 通过使用一个专门设计的、独特的防尘密封，气缸具备良好的防尘性能，使得 SMC C85 气缸适合在多尘的环境中使用。 包含合成橡胶衬垫密封的低摩擦设计使气缸的最大运行速度达到 1500 mm/s。 C85 气缸随附有一个活塞杆锁紧螺母和端部安装螺母，大扁平扳手的使用和节约空间的设计使安装十分容易。 ### C85 10-25mm 直径和开关传感器

The C85 series conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 8mm through 25mm with standard strokes ranging from 10mm through 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packings and replaceable nose seals, the C85 offers exceptional service life.

.

Double acting, single rod, crimped cylinder * Conforms to ISO 6432 and CETOP RP52P * Bore sizes *: 8, 10, 12, 16, 20, 25 * Standard strokes up to 300mm * Auto switch capable
