20-313140

VERO  20-313140  电路板测试点, 黄色, 通孔安装, 1.02 mm, 磷青铜, 镀锡触芯

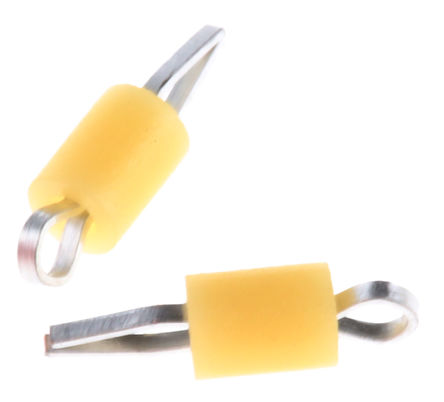

The from Vero is a yellow bead terminal assembly for 1.02mm hole size. This PCB test point is used for attaching leads for test scopes and probes with scintered glass insulator. The compliant pin design allows terminal to be inserted without damaging hole plating. The terminal will remain in place even when the board is inverted for soldering. The sintered glass bead has a recommended maximum working temperature of 475°C. This exceeds all current standard temperature profile requirements.

.

Compliant pin design allows terminal to be inserted without damaging hole plating

.

Terminal will remain in place even when the board is inverted for soldering

.

Borosilicate sintered glass bead

.

Phosphor bronze BS2873 wire loop with 3 to 5µ electroplated bright tin plating
