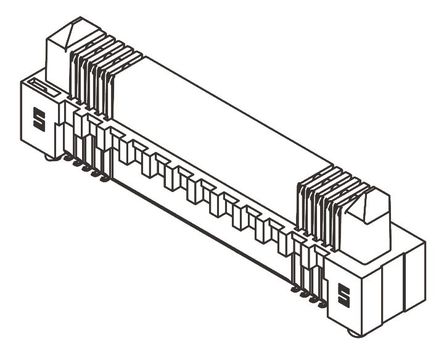

ERM8-030-05.0-S-DV-TR

SAMTEC  ERM8-030-05.0-S-DV-TR  堆叠板连接器, ERM8系列, 60 触点, 针座, 0.8 mm, 表面安装　, 2 排

ERM8 系列坚固高速管座，5 型

此类 的板对板 ERM8 系列 SMT、节距为 0.8mm 的高速管座，其坚固边缘速率触点上带有 0.76 μm 镀金，印刷电路板引线则镀锡。 此类 ERM8 系列的板对板系列是 SMT、节距为 0.8mm 的高速 5 型管座，总板高为 8.91mm，晶片高度为 4.61mm。

绝缘体材料：黑色 LCP

工作温度：-55→125°C

### 注

与 ERF8 系列插座配用，请参见库存号 766-8868（典型）。

得捷:
CONN HDR 60POS SMD GOLD

欧时:
Samtec PCB 针座 Edge Rate ERM8 系列 60路 0.8mm节距 2排 直向 ERM8-030-05.0-S-DV-TR, 焊接端接, 1.4A

e络盟:
堆叠板连接器, ERM8系列, 60 触点, 针座, 0.8 mm, 表面安装　, 2 排

艾睿:
Use this micro high speed terminal strip ERM8-030-05.0-S-DV-TR header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 200 VAC. This is a 2-row connector. It has a straight body orientation. Its pitch is 0.8 mm. This device has a maximum current rating of 2.2 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. ERM8-030-05.0-S-DV-TR is housed in black liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 30 mm long, 8.91 mm tall and 5.6 mm deep.

安富利:
Conn Micro High Speed Terminal Strip HDR 60 POS 0.8mm Solder ST SMD T/R

Newark:
# SAMTEC  ERM8-030-05.0-S-DV-TR  Stacking Board Connector, ERM8 Series, Header, 0.8 mm, 60, Surface Mount, Gold Plated Contacts
