DRRJ45T8

ADAPTER, RJ45 TO TERMINAL ADAPTER

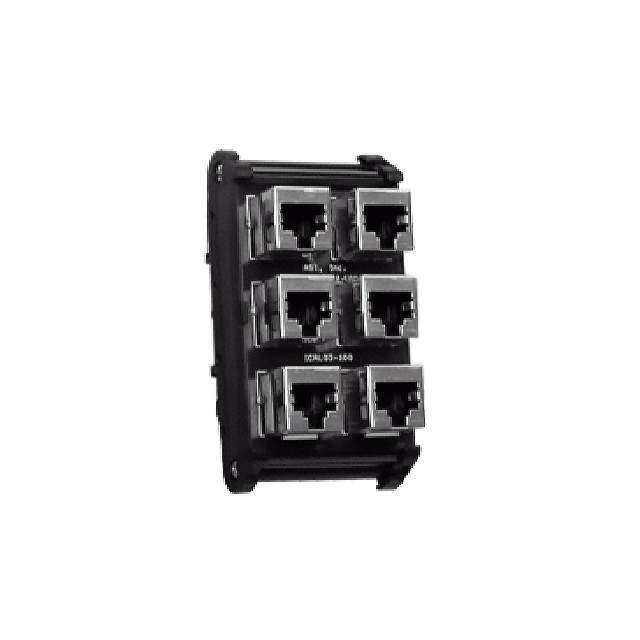

These adapters convert modular RJ-style connectors to terminal block connectors, providing a rugged means by which standard shielded cabling can be used in lieu of flat, unshielded cable. The DRRJ11T6 can be used with RJ-11 or RJ-12 cables, while the can be used with RJ-45 connectors. The adapters are designed to mount on any standard DIN rail. Each screw-terminal accepts wire in size from 26 to 14 AWG 0.14 to 2.5 mm solid; 0.14 to 1.5 mm stranded. Terminal numbers for the screw-terminals correspond directly to the terminal pin out of the RJ connector. There is an extra terminal on each block labeled “S" for the connection of shields.
