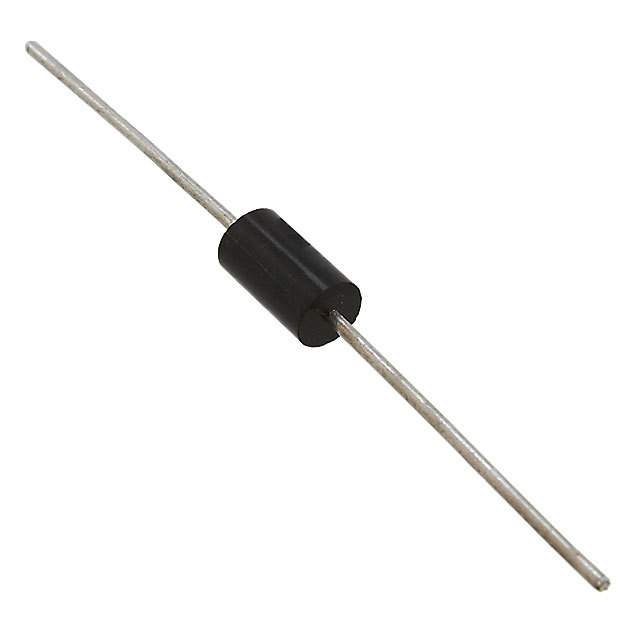

1.5KE22CA-TP

双向 18.8V

Features

• Economical Series and Quick Response

• Available in Both Unidirectional and Bidirectional Construction

• 1500Watts Peak Power Dissipation

• Excellent Clamping Capability

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• UL Recognized File#E331408

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:
TVS DIODE 18.8VWM 30.6VC DO201AE

立创商城:
双向 Vrwm:18.8V 1.5kW

艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Micro Commercial Components&s; 1.5KE22CA-TP TVS diode. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 30.6 V and minimum breakdown voltage is 20.9 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
