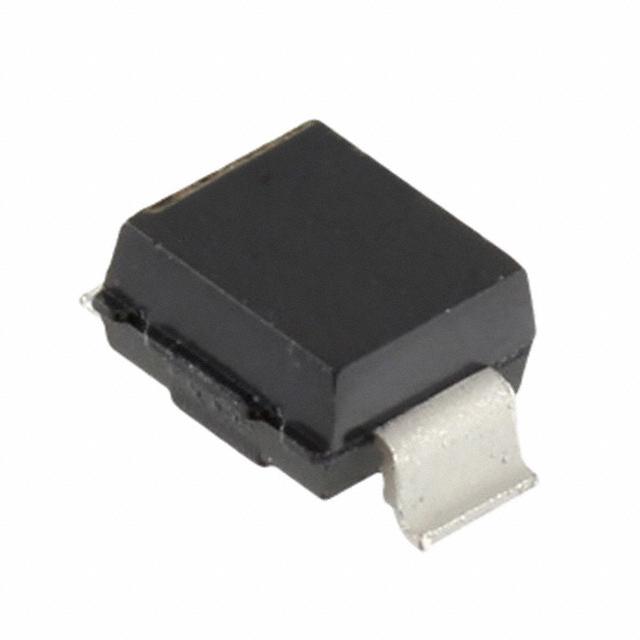

MSMBG9.0CA

DO-215AA 9V 600W

The MSMB5.0A - MSMB170CA series of surface mount 600 watt transient voltage suppressors provide a selection of stanfoff voltage Vwm from 5.0 to 170 V. These high-reliablity devices are available in either unidirectional or bidirectional versions. The SMBG Gull-wing design in the DO-215AA package is ideal for visible solder connections. The SMBJ J-design in the DO-214AA package allows for greater PC board mounting density. It is available with SnPb or RoHS compliant matte-tin plating.

立创商城:
Vrwm:9V 600W

艾睿:
Implement surge protection with this MSMBG9.0CA TVS diode from Microsemi. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 15.4 V and minimum breakdown voltage is 10 V. Its maximum leakage current is 5 μA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
