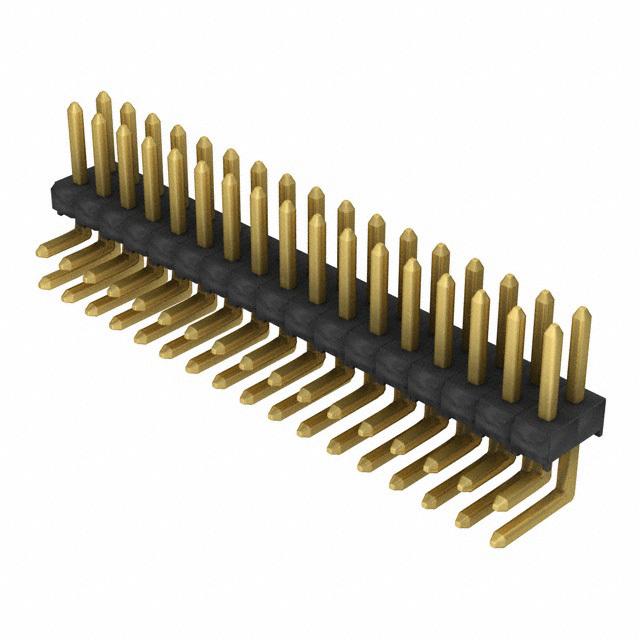

TSW-117-08-G-D-RA

SAMTEC TSW-117-08-G-D-RA Board-To-Board Connector, 2.54mm, 34Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔，直角 34 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER R/A 34POS 2.54MM

艾睿:
Thanks to Samtec&s;s unshrouded TSW-117-08-G-D-RA header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 34 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. It has a maximum voltage rating of 450 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 43.18 mm long, 5.56 mm tall and 12.44 mm deep. This connector has an operating temperature of -55 to 125 °C. TSW-117-08-G-D-RA is housed in black polyester. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole

Newark:
# SAMTEC  TSW-117-08-G-D-RA  Board-To-Board Connector, 2.54 mm, 34 Contacts, Header, TSW Series, Through Hole, 2 Rows
