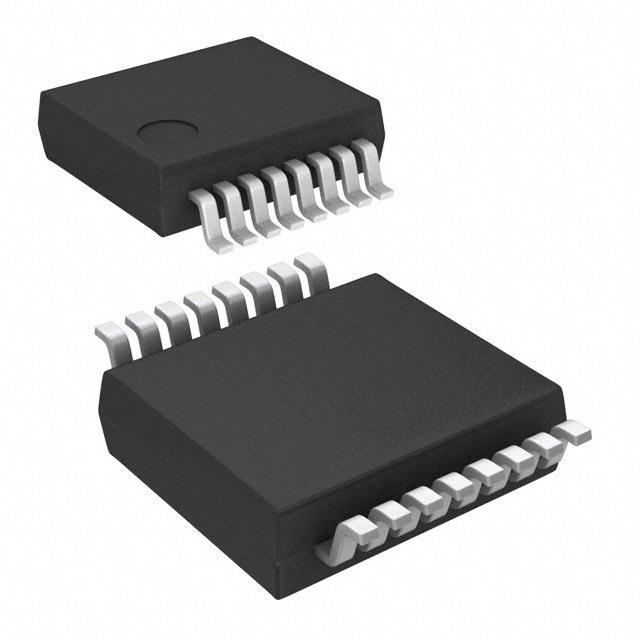

LB11660RV-MPB-E

1-Phase Fan Motor Driver 16Pin SSOP Fan-Fold

The LB11660RV is a single-phase bipolar half pre-driver that can achieve high-efficient direct PWM drive with ease. It is ideal for driving small-sized cooling fans used in servers. The LB11660RV is provided with the RD lock detection output pin and the LB11660FV the FG rotational speed detection output pin, respectively.

Features

---

 |

.

Single-phase full-wave drive 15V-1.5A output transistor built in upper output Tr incorporated half pre-driver.

.

Variable speed control by an external signal.

.

Lowest speed setting possible.

.

Current limiter circuit

the circuit actuated at IO = 1A when Rf = 0.5Ω, Rf determines the limiter value.

.

Kickback absorption circuit built in.

.

Soft switching circuit achieves low power consumption, low loss, and low noise driving at a time of phase change.

.

HB built in.

.

Lock protection and automatic reset functions incorporated

including a circuit that changes the ON/OFF ratio according to the power supply voltage

.

RD lock detection output.

.

Thermal protection circuit incorporated design guaranteed.
