RT9711GS

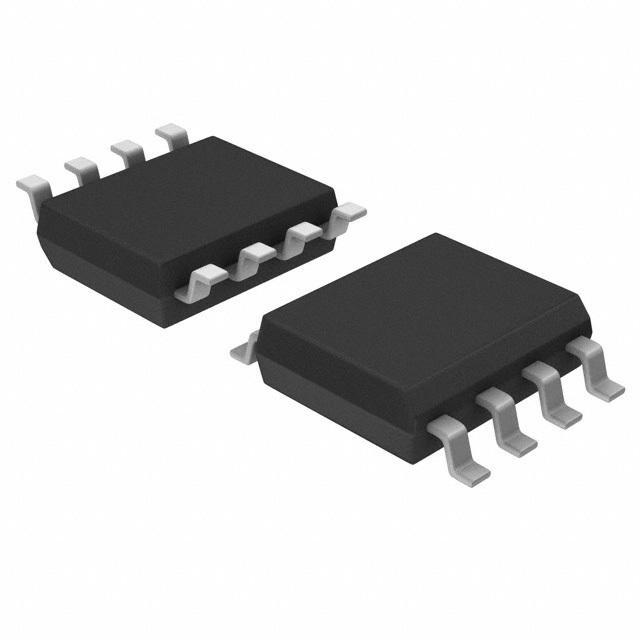

IC PWR SWITCH USB 1.5A 8SOP

General Description

The RT9711 is a low voltage, single N-Channel MOSFET high-side power switch, optimized for self-powered and bus- powered Universal Serial Bus USB applications. The RT9711 equipped with a charge pump circuitry to drive the internal MOSFET switch; the switch"s low RDSON, 80mΩ, meets USB voltage drop requirements; and a flag output is available to indicate fault conditions to the local USB controller.

Features

Compliant to USB Specifications

Built-In N-Channel MOSFET

   Typical RDSON: 80mΩ SOT-23-5, 90mΩ SOP-8

Output Can Be Forced Higher Than Input Off-State

Low Supply Current :

   25μA Typical at Switch On State

   1μA Typical at Switch Off State

Guaranteed 1.5A Continuous Load Current

Wide Input Voltage Ranges : 2.5V to 5.5V

Open-Drain Fault Flag Output

Hot Plug-In Application Soft-Start

1.7V Typical Under-Voltage Lockout UVLO

Current Limiting Protection

Thermal Shutdown Protection

Reverse Current Flow Blocking no body diode

UL Approved−E219878

RoHS Compliant and 100% Lead Pb-Free

Applications

USB Bus/Self Powered Hubs

USB Peripherals

ACPI Power Distribution

PC Card Hot Swap

Notebook, Motherboard PCs

Battery-Powered Equipment

Hot-Plug Power Supplies

Battery-Charger Circuits
