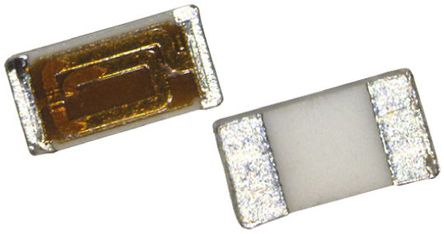

LQP15MN9N1B02D

Murata 0402 LQP15M 系列薄膜电感器LQP15M 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。 高频率范围时的高 Q 由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感 ### 应用：-移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。 移动电话 “蓝牙” W-LAN 一般高频电路 ### 表面安装 0402 电感器（扼流圈）

Murata 0402 LQP15M 系列薄膜器

LQP15M 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。

高频率范围时的高 Q

由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感

### 应用：-

移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。

移动电话

“蓝牙”

W-LAN

一般高频电路

立创商城:
9.1nH ±0.1nH 1.3Ω

得捷:
FIXED IND 9.1NH 100MA 1.3OHM SMD

欧时:
Murata LQP15M 系列 LQP15MN9N1B02D 9.1 nH ±0.1nH 铁氧体 多层贴片式电感器, 0402 1005M封装, SRF: 4.5GHz

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this rf chip LQP15MN9N1B02D surface mount inductor from Murata is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 4.5G Hz. It has an inductance of 9.1n H. This device is made with thin film technology. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 1.3 Ohm. This product is 1.1 mm long, 0.45 mm tall and 0.6 mm deep.

安富利:
Ind RF Chip Thin Film 9.1nH 0.1nH 500MHz 13Q-Factor 100mA 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0091uH 0.1nH 500MHz 13Q-Factor 0.1A 1.3Ohm DCR 0402 T/R

Win Source:
9.1nH Unshielded Thin Film Inductor 100mA 1.3 Ohm Max 0402 1005 Metric
