EVAL-ADM2582EEBZ

ANALOG DEVICES  EVAL-ADM2582EEBZ  评估模块, 半或全双工, 测试点用户测试所有信号

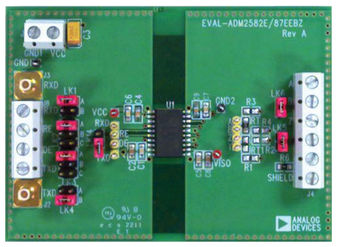

Evaluation Board for ADM2582E Isolated RS-485 Transceiver

Power and signal isolated RS-485/RS422 transceiver 16Mbps

Convenient connections for power and signal through screw terminal blocks

Configurable as half-duplex or full-duplex

5 or 3.3 Volts operation

Easily configurable through jumper connections

Test points for measuring all signals

Layout optimized for emissions according to the AN-0971 Application Note

Passes the EN550222001 Class B emissions standard

### RS-485 线路驱动器和接收器
