MAX14689EWL+T

模拟开关, 1 放大器, DPDT, 0.55 ohm, 1.6V 至 5.5V, WLP, 9 引脚

1 电路 IC 开关 2：2 450 毫欧 9-WLP（1.26x1.26）

得捷:
IC SWITCH ANALOG DPDT 9-WLP

立创商城:
MAX14689EWL+T

贸泽:
模拟开关 IC High BW 5V Capable DPDT Analog Switches

安富利:

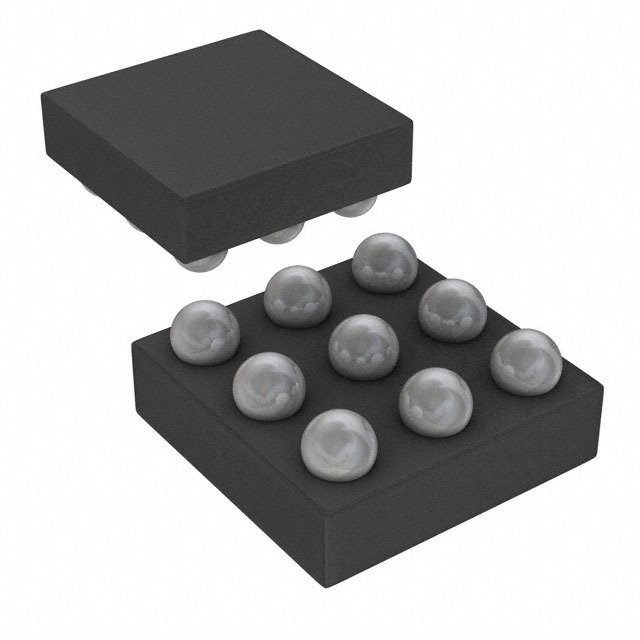

The MAX14689 ultra-small, low-on-resistance RON double-pole/double-throw DPDT analog switches feature Beyond-the-Rails™ capability that allows signals from -5.5V to +5.5V to pass without distortion, even when the power supply is below the signal range. The low on-resistance 0.25Ω also makes the device ideal for low-distortion switching applications, such as audio or video.The MAX14689 is fully specified to operate from a single +1.6V to +5.5V power supply. Because of the low supply current requirement, VCC can be provided by a GPIO. When power is not applied, the switches go to a high-impedance mode and all analog signal ports can withstand signals from -5.5V to +5.5V. The switch is controlled with a single control bit, CB.The MAX14689 is available in a 1.2mm x 1.2mm, 0.4mm pitch, 9-bump wafer-level package WLP, and operate over the -40°C to +85°C extended temperature range.
