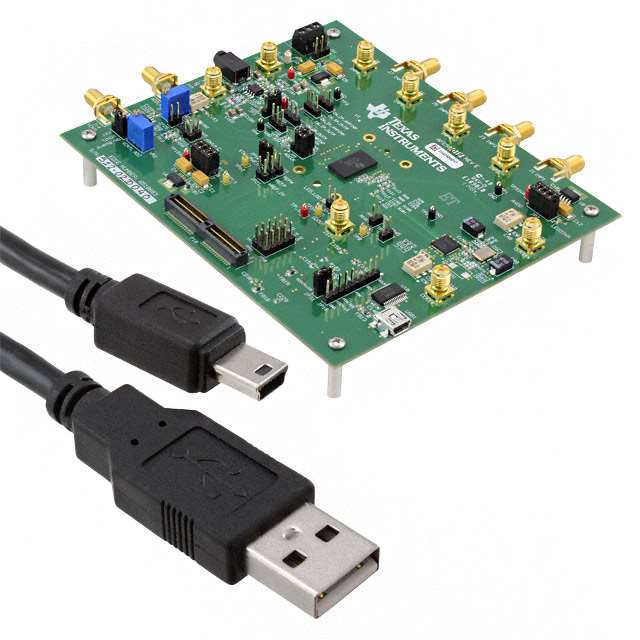

AFE5808EVM
ANALOG FRONT END, USB, EVALUATION MODULE
The provides a convenient platform to evaluate the AFE5808, highly integrated Analog Front End AFE solution specifically designed for ultrasound systems in which high performance and small size are required. The AFE5808 is an 8 channel fully integrated analog front end AFE with a continuous wave CW Doppler mixer for Spectral Doppler ultrasound equipment. Users need to provide the input signal for measurement from a signal generator. Users will need to have a method to attach and analyze the data from the AFE5808"s LVDS data stream. In the event that the user does not have a method, a deserializer board is offered. This board, the TSW1250EVM, directly connects to the AFE5808EVM and provides the data in parallel form for all eight channels simultaneously. The TSW1250EVM must be purchased separately.
