AD5683RACPZ-2RL7

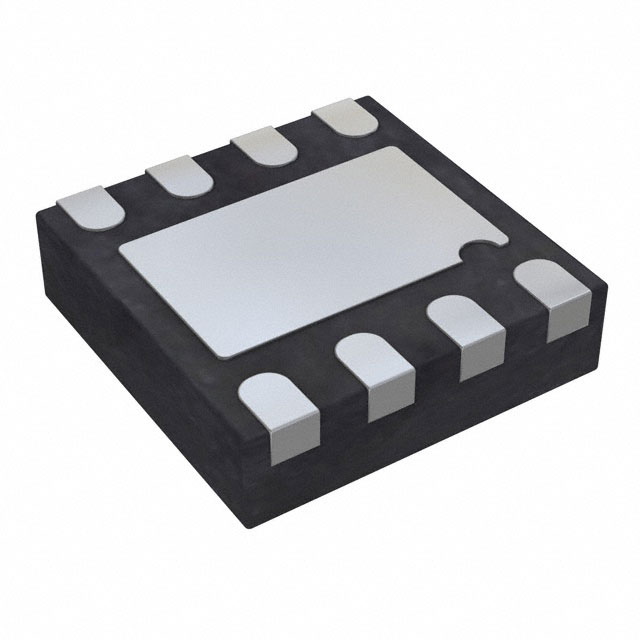

DAC 1CH Segment 16Bit 8Pin LFCSP EP T/R

Product Details

The AD5683R/AD5682R/AD5681R/AD5683, members of the nanoDAC+® family, are low power, single-channel, 16-/14-/12-bit buffered voltage out digital-to-analog converters DACs. The devices, except the AD5683, include an enabled by default internal 2.5 V reference, offering 2 ppm/°C drift. The output span can be programmed to be 0 V to VREF or 0 V to 2 × VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in a 2.00 mm × 2.00 mm, 8-lead LFCSP or a 10-lead MSOP.

The internal power-on reset circuit ensures that the DAC register is written to zero scale at power-up while the internal output buffer is configured in normal mode. The AD5683R/AD5682R/AD5681R/AD5683 contain a power-down mode that reduces the current consumption of the device to 2 µA maximum at 5 V and provides software selectable output loads while in power-down mode.

The AD5683R/AD5682R/AD5681R/AD5683 use a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz. Some devices also include asynchronous RESET pin and VLOGIC pin options, allowing 1.8 V compatibility

Product Highlights

1. High Relative Accuracy INL.

AD5683R/AD5683 16-bit: ±2 LSB maximum.

2. Low Drift, 2.5 V On-Chip Reference.

2 ppm/°C typical temperature coefficient.

5 ppm/°C maximum temperature coefficient.

3. Two Package Options.

2.00 mm × 2.00 mm, 8-lead LFCSP.

10-lead MSOP.

Applications

.

Process controls

.

Data acquisition systems

.

Digital gain and offset adjustment

.

Programmable voltage sources

### Features and Benefits

.

Ultrasmall package: 2 mm × 2 mm, 8-lead LFCSP

.

High relative accuracy INL: ±2 LSB maximum at 16 bits

.

AD5683R/AD5682R/AD5681R

.

Low drift, 2.5 V reference: 2 ppm/°C typical

.

Selectable span output: 2.5 V or 5 V

.

Total unadjusted error TUE: 0.06% of FSR maximum

.

Offset error: ±1.5 mV maximum

.

Gain error: ±0.05% of FSR maximum

.

Low glitch: 0.1 nV-sec

.

High drive capability: 20 mA

.

Low power: 1.2 mW at 3.3 V

.

Independent logic supply: 1.62 V logic compatible

.

Wide operating temperature range: −40°C to +105°C

.

Robust 4 kV HBM ESD protection
