TPSD156M035H0100

2917 15uF ±20% 35V 3.1mm

15 µF 模制 钽器 35 V 2917（7343 公制） 100 毫欧

艾睿:

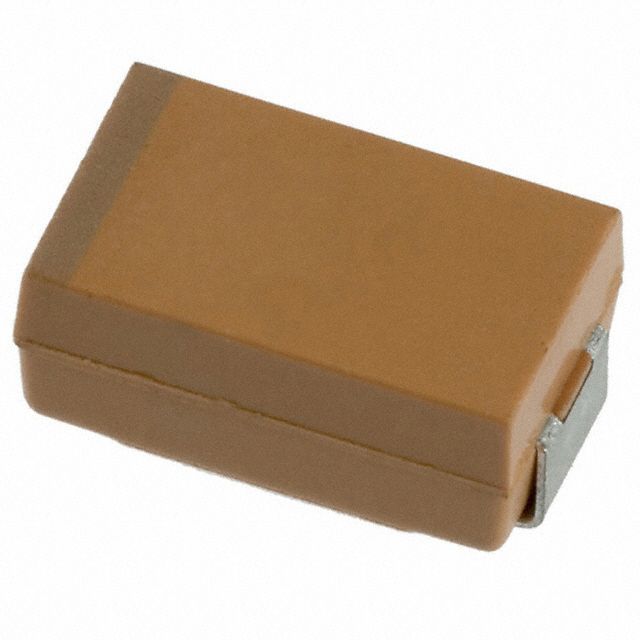

Cap Tant Solid 15uF 35V D CASE 20% 7.3 X 4.3 X 2.9mm SMD 7343-31 0.1 Ohm 125°C T/R

安富利:
With an ESR as low as 80mΩ, TPS capacitors are suitable for smoothing and filtering on 3.3V power rails, which is a favorite output voltage of DC/DC converters. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.TPS tantalum capacitors have a maximum direct leakage current of 19.8μA and a maximum dissipation factor at 120Hz of 12%. Operating temperature range is -55 to +125°C. Importantly, these devices meet the requirements of AEC-Q200 for the automotive industry.

Chip1Stop:
Cap Tant Solid 15uF 35V D CASE 20% 7.3 X 4.3 X 2.9mm SMD 7343-31 0.1 Ohm 125A？A℃ T/R
