DG2018DN-T1-E4

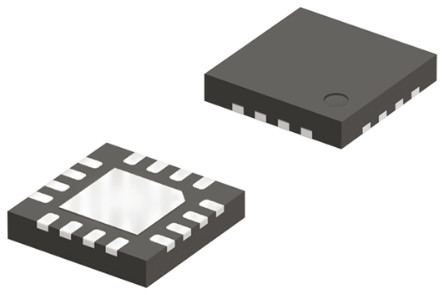

VISHAY  DG2018DN-T1-E4  模拟开关, 双通道, DPDT, 2 放大器, 12 ohm, 1.8V 至 5.5V, QFN, 16 引脚

The is a double-pole double-throw DPDT Dual Analog Switch with two control inputs that each controls a pair of single-pole/double-throw SPDT. When operated on a 3V supply, the DG2018"s control pins are compatible with 1.8V digital logic. Built on Vishay Siliconix"s low voltage submicron CMOS process, it is ideal for high performance switching of analog signals; providing low on-resistance 6R at 2.7V, fast speed Ton, Toff at 42ns and 16ns and a bandwidth that exceeds 180MHz. The DG2018 were designed to offer solutions that extend beyond audio/video functions, to providing the performance required for today"s demanding mixed-signal switching in portable applications. An epitaxial layer prevents latch-up. All switches conduct equally well in both directions when on and blocks up to the power supply level when off.

.

Low voltage logic compatible

.

Ideal for both analog and digital signal switching

.

Reduced power consumption

.

High accuracy

.

Reduced PCB space

.

Fast switching

.

Low leakage
