SY100EPT22VKCTR

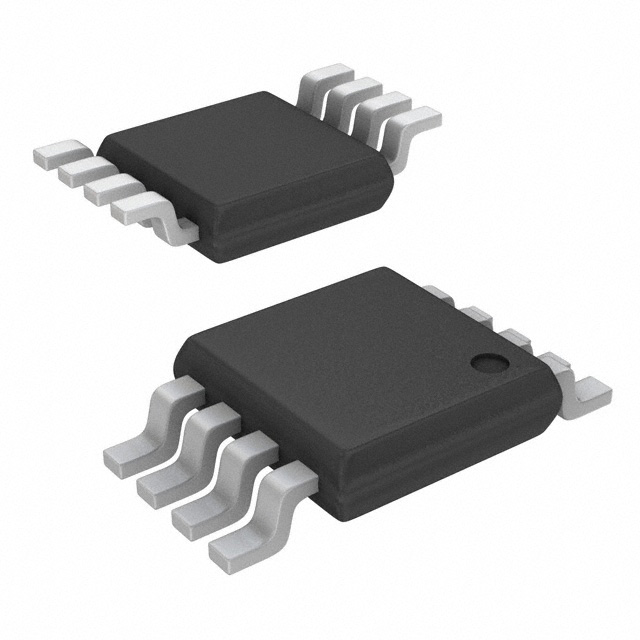

IC TRANSLATOR DIFF 3.3V 8-MSOP

DESCRIPTION

The SY100EPT22V is a dual TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used in either LVTTL/LVCMOS/LVPECL or TTL/CMOS/PECL systems.

The device only requires a single positive supply of 3.3V or 5V - no negative supply is required. The tiny 8-pin MSOP package and the low skew, dual gate design of the EPT22V makes it ideal for those applications where space, performance, and low power are at a premium.

FEATURES

■ 3.3V and 5V power supply option

■ 300ps typical propagation delay

■ Differential LVPECL outputs

■ ICC Max 25mA

■ PNP LVTTL inputs for minimal loading

■ Flow-through pinouts

■ Q outputs will default HIGH with inputs open

■ Max. frequency range 800MHz

■ Available in 8-pin MSOP and SOIC package
