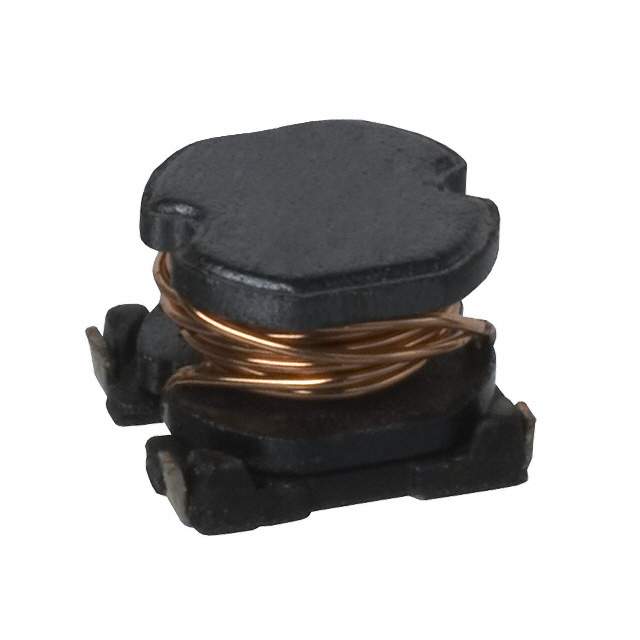

CR43NP-220MC

Inductor Power Unshielded Drum Core 22uH 20% 2.52MHz Ferrite 680mA 378mOhm DCR T/R

22µH Unshielded Wirewound Inductor 680mA 378mOhm Max Nonstandard

得捷:
FIXED IND 22UH 680MA 378MOHM SMD

立创商城:
22uH ±20% 680mA 378mΩ

贸泽:
Fixed Inductors 22uH 0.68A

艾睿:
This power CR43NP-220MC surface mount inductor from Sumida Corporation is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This SMD inductor has a maximum DC current of 680m A with a maximum resistance of 378m Ohm. This device is made with drum core technology. This product is 4.8 mm long, 3.5 mm tall and 4.3 mm deep. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 23MTyp Hz. It has a tolerance of 20%. It has an inductance of 22u H.

Verical:
Inductor Power Unshielded Drum Core 22uH 20% 2.52MHz Ferrite 0.68A 0.378Ohm DCR T/R
