TC7SZ00FU

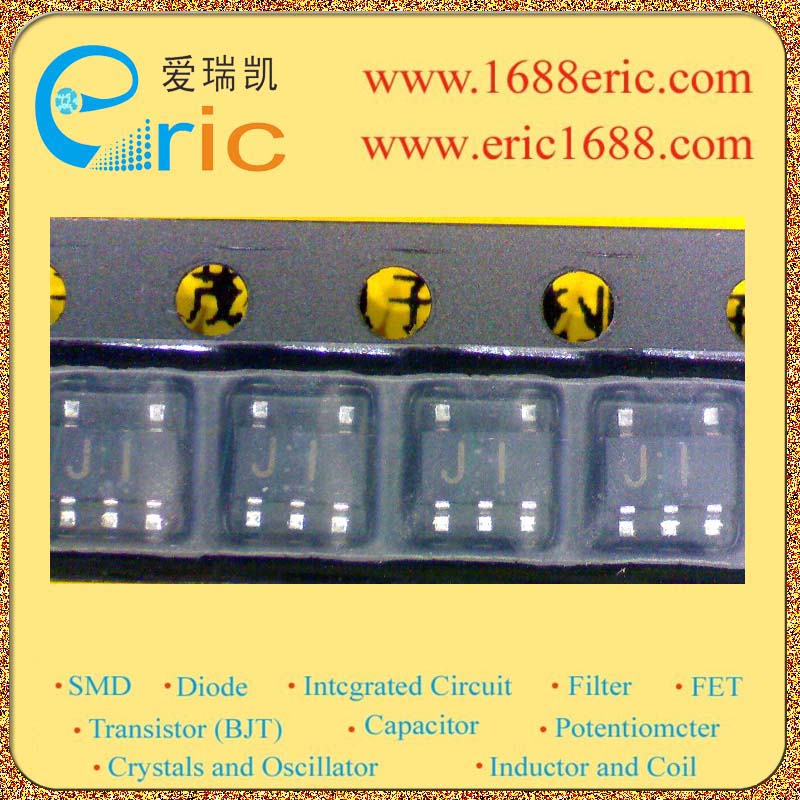

IC 与非门 TC7SZ00FU SOT-353/USV marking/标记 J1

逻辑类型Logic Type| 与非门 NAND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 1.8V~5.5V 静态电流IqCurrent - Quiescent Max| 2μA 输出高，低电平电流Current - Output High, Low| -32mA,32mA 低逻辑电平Logic Level - Low| 0.25v~0.3v 高逻辑电平Logic Level - High| 0.7v~0.75v 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 4.3ns @ 4.5V~5.5V，15pF Description & Applications| TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic.

.

2-Input NAND Gate .* High output current : ±24 mA min at VCC = 3 V. * Super high speed operation : tpd = 2.4 ns typ. at VCC = 5 V, 50 pF. * Operating voltage range : VCC = 1.8 to 5.5 V .* 5.5-V tolerant inputs .* 5.5-V power down protection output .* Matches the performance of TC74LCX series when operated at 3.3-V VCC. 描述与应用| CMOS数字集成电路硅单片。*2输入与非门。*高输出电流：±24 mA（分钟）在VCC= 3 V。*超高速运转：：TPD =2.4纳秒（典型值）VCC= 5 V，50 pF的。*工作电压范围：VCC=1.8至5.5 V。*5.5-V宽容输入。* 5.5-V断电保护输出。*匹配时表现TC74LCX系列工作在3.3-V VCC。
