OD121JE

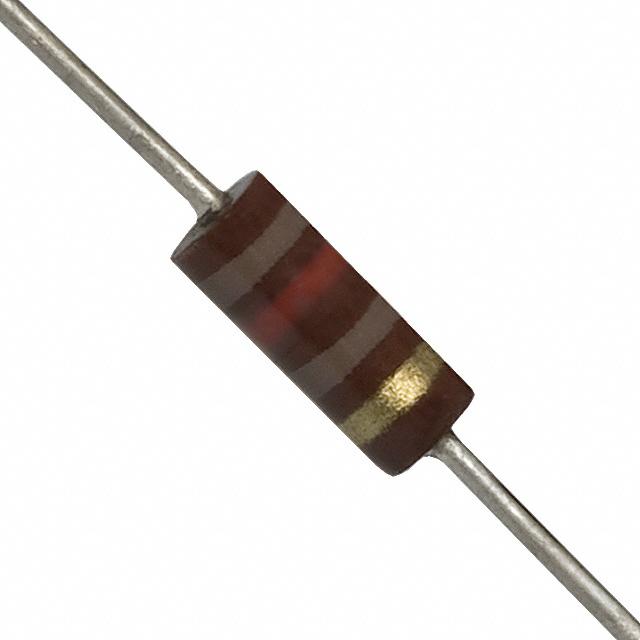

OHMITE  OD121JE  通孔电阻器, Little Demon®, OD系列, 120 ohm, 250 mW, ± 5%, 250 V, 轴向引线

The is a Carbon Composition Resistor manufactured by extruding a blend of carbon and organic binders inside a phenolic outer body with solder-coated copper terminal. The extrusion is cut to length, leads inserted, cured and marked to form a finished resistor. This fixed resistor is made tough by a molding process that combines the terminals, insulation and resistive element into an integrated unit. Along with their small size, Little Demons® perform with low noise, dissipate heat rapidly and offer high temperature stability. This resistor is able to withstand larger short-term pulses and higher voltages than film resistors. It is sensitive to moisture and therefore, storage recommendations should be adhered to. The resistor is highly hygroscopic and changes in resistance value can occur if too much moisture is absorbed. For this reason, alcohol or hydrocarbon solvents are recommended for rinsing.

.
Molded insulation for high dielectric strength
.
Rugged construction
.
High surge capabilities
.
500VAC Dielectric withstanding voltage

The solderability may be affected due to oxidization of lead wire, the resistance value of some units may not completely recover to original value.
