MAX9031AUK-T

低成本，超小型，单/双/四路，单电源比较器 Low-Cost, Ultra-Small, Single/Dual/Quad Single-Supply Comparators

General Description

The MAX9030/MAX9031/MAX9032/MAX9034 single/ dual/quad comparators are optimized for single-supply applications from +2.5V to +5.5V but can also be operated from dual supplies. These comparators have a 188ns propagation delay and consume 35µA of supply current per comparator over the -40°C to +125°C operating temperature range. The combination of low

power, single-supply operation down to +2.5V, and ultra-small footprint makes these devices ideal for portable applications.

Features

♦Low-Cost Solution Available in Space-Saving SC70 Packages MAX9030/MAX9031

♦+2.5 to +5.5V Single-Supply Voltage Range

♦Comparator Output Swings Rail-to-Rail

♦Internal 4mV Comparator Hysteresis

♦188ns Propagation Delay

♦Low 35µA Supply Current

♦No Phase Reversal for Overdriven Inputs

♦Space-Saving Packages

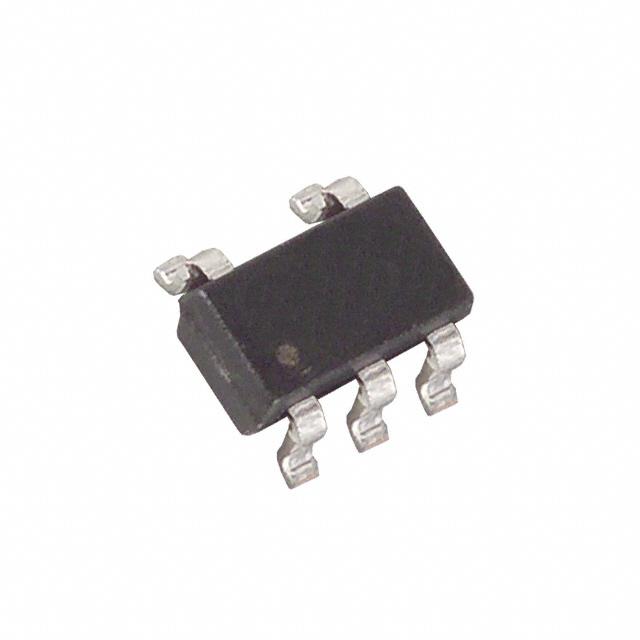

  5-Pin SC70 MAX9031

  6-Pin SC70 MAX9030

  8-Pin SOT23 MAX9032

  14-Pin TSSOP MAX9034
