CPH-ETD49-1S-20P-C

FERROXCUBE CPH-ETD49-1S-20P-C 变压器骨架, 20针, ETD49

The CPH-ETD49-1S-20P is a 20-pin Transformer Bobbin with glass-reinforced polybutylene terephthalate PBT coil former, thermoplastic type and copper tin alloy pin used with ETD49 series ferrite cores. This bobbin has ETD49/25/16 coil former. The ETD economic transformer design implies that this design achieves maximum throughput power related to volume and weight of the total transformer. Shielding is somewhat improved comparatively. The matching coil formers are suitable for many winding type and can be handled on automatic equipment.

.: Resistance to soldering heat

.: 155°C Maximum operating temperature

.: UL94V-0 Flammability rating

CPH-ETD49-1S-20P-C详细参数

CPH-ETD49-1S-20P-C PDF数据文档

图片	型号	厂商	下载
	CPH-ETD49-1S-20P-C	Ferroxcube
	CPH-ETD29-1S-13P	Ferroxcube
	CPH-ETD39-1S-16P-C	Ferroxcube
	CPH-EFD20-1S-10PD-Z	Ferroxcube
	CPH-ETD59-1S-24P	Ferroxcube
	CPH-ETD44-1S-18P	Ferroxcube
	CPH-ETD34-1S-14P	Ferroxcube
	CPH-EFD20/7-1S-10P	Ferroxcube
	CPH-U15/11/6-1S-4P	Ferroxcube

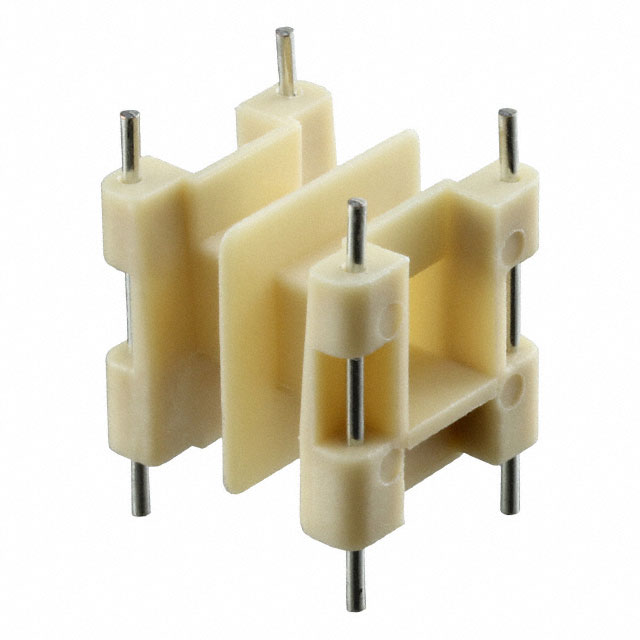

	CPH-U15/11/6-2S-4P	Ferroxcube
