EKMH201VNN122MA40T

1.2mF ±20% 200V 2650mA Φ35mm

1200 µF 200 V 铝电解器 径向，Can - 卡入式 207 毫欧 @ 120Hz 105°C 时为 2000 小时

得捷:
CAP ALUM 1200UF 20% 200V SNAP

贸泽:
Aluminum Electrolytic Capacitors - Snap In 1200uF 200volts 20%

艾睿:

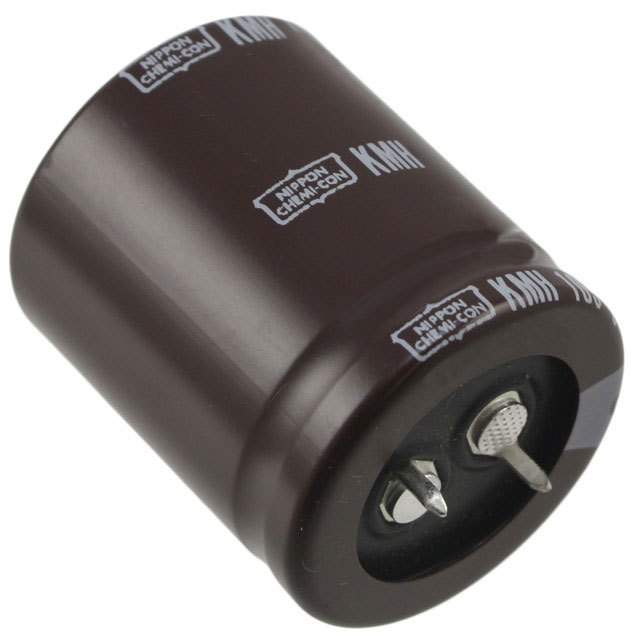

This electrolytic EKMH201VNN122MA40T aluminum capacitor from United Chemi-con has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 3000@5Min μA. Its capacitance value is 1200uF. This part has a lead diameter of 1 mm and a pitch of 10 mm. This product is 40 mm tall with a diameter of 35 mm. It has a tolerance of 20%. The EKMH201VNN122MA40T aluminum electrolytic capacitor has a snap-in termination style.

Verical:
Cap Aluminum Lytic 1200uF 200V 20% 35 X 40mm Snap-In 10mm 0.207 Ohm 2650mA 2000h 105C

Newark:
# UNITED CHEMI-CON  EKMH201VNN122MA40T  Electrolytic Capacitor, Snap-in, 1200 µF, 200 V, KMH Series, ± 20%, Quick Connect, Snap-In, 35 mm

MASTER:
Cap Aluminum Lytic 1200uF 200V 20% 35 X 40mm Snap-In 10mm 0.207 Ohm 2650mA 2000h 105°C

Electro Sonic:
Cap Aluminum Lytic 1200uF 200V 20% 35 X 40mm Snap-In 10mm 0.207 Ohm 2650mA 2000h 105°C
