264-327

接线端子, DIN导轨安装, 中心, 绿/黄, 2 路, 28 AWG, 12 AWG, 2.5 mm², 夹式, 20 A

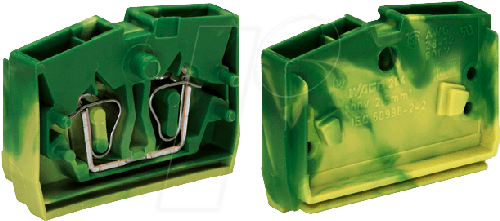

The from Wago is a green-yellow colour 2-conductor centre terminal block with fixing flange. It has two connection points, one potential and one level. This terminal block has ABS, AEx UL International Demko A/S, BV, CCA, CSA, DNV GL, KEMA, KR and LR approvals.

.

Required between end plate and end terminal block for terminal strips

.

CAGE CLAMP connection technology

.

Conductor cross-section of 12AWG THHN, THWN

.

0.08mm² to 2.5mm² 28AWG to 12AWG solid conductors tool operated termination

.

0.08mm² to 2.5mm² 28AWG to 12AWG fine stranded tool operated termination

.

Strip length of 8mm to 9mm 0.31inch to 0.35inch

.

Front entry wiring and horizontal design

.

0.072MJ fire load and 3.76g weight

.

Dimension is 6mm 0.236inch x 22.1mm 0.87inch x 32mm 1.26inch W x H x D
