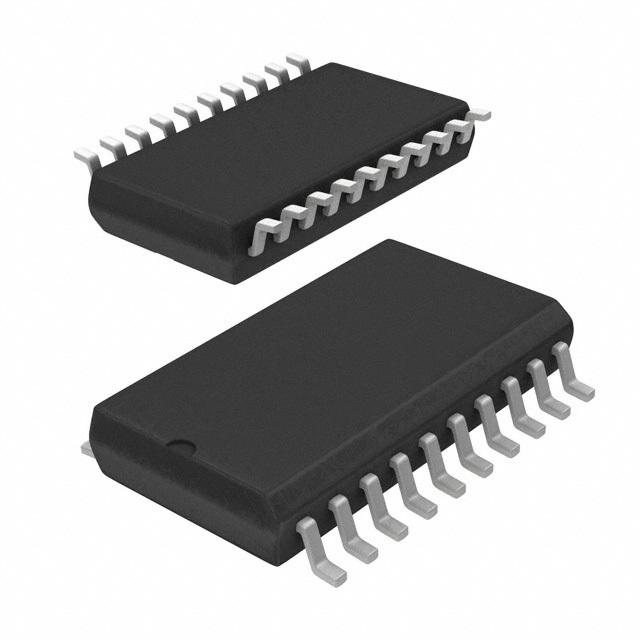

MC74LCX573M

低电压CMOS八路透明锁存器流量通过引脚电压为5 V容限输入和输出（三态，非反相） Low-Voltage CMOS Octal Transparent Latch Flow Through Pinout With 5 V−Tolerant Inputs and Outputs 3−State, Non−Inverting

Low-Voltage CMOS Octal Transparent Latch Flow Through Pinout

With 5 V−Tolerant Inputs and Outputs 3−State, Non−Inverting

The MC74LCX573 is a high performance, non−inverting octal transparent latch operating from a 2.3 to 3.6 V supply. High

impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VIspecification of 5.5 V allows MC74LCX573 inputs to be safely driven from 5.0 V devices.

Features

•Designed for 2.3 to 3.6 V VCC Operation

•5.0 V Tolerant − Interface Capability With 5.0 V TTL Logic

•Supports Live Insertion and Withdrawal

•IOFFSpecification Guarantees High Impedance When VCC= 0 V

•LVTTL Compatible

•LVCMOS Compatible

•24 mA Balanced Output Sink and Source Capability

•Near Zero Static Supply Current in All Three Logic States 10 A

  Substantially Reduces System Power Requirements

•Latchup Performance Exceeds 500 mA

•ESD Performance: Human Body Model >2000 V Machine Model >200 V

•Pb−Free Packages are Available

.
