SN74ALVC10NSR

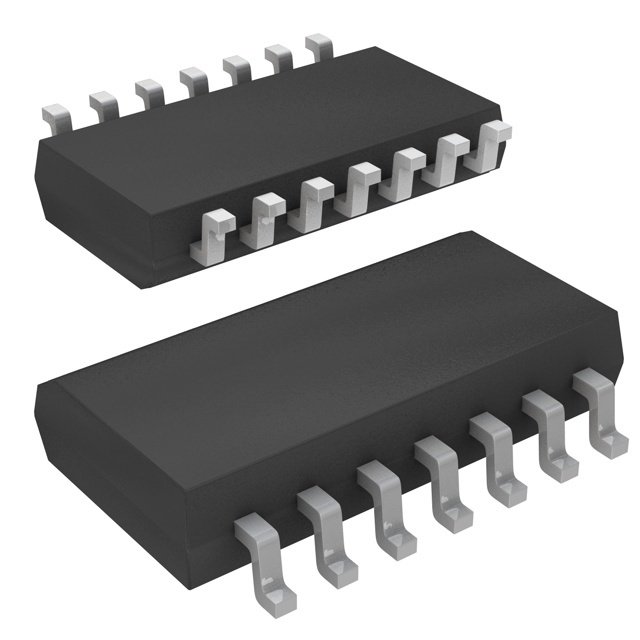

三路 3 输入正与非门 14-SO -40 to 85

DESCRIPON/ORDERING INFORMATION

This triple 3-input positive-NAND gate is designed for 1.65-V to 3.6-V VCC operation.

The SN74ALVC10 performs the Boolean function Y = A • B • C or Y = A + B + C in positive logic.

FEATURES

• Operates From 1.65 V to 3.6 V

• Max tpd of 3 ns at 3.3 V

• ±24-mA Output Drive at 3.3 V

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

  – 2000-V Human-Body Model A114-A

  – 200-V Machine Model A115-A

  – 1000-V Charged-Device Model C101
