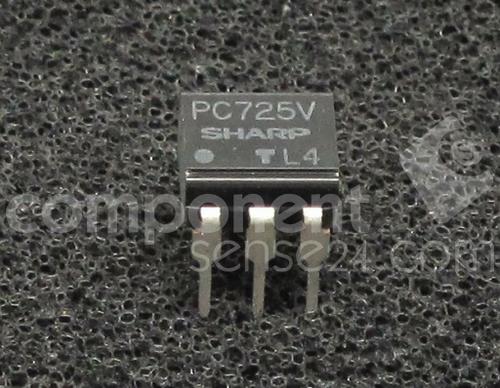

PC725V

Optocoupler DC-IN 1CH Darlington With Base DC-OUT 6Pin PDIP

High Sensitivity, High Collector-emitter Voltage Type Photocoupler

■Features

1\. High collector-emitter voltage

   VCEO: 300V

2\. High current transfer ratio

    CTR : MIN. 1 000% at IF= 1mA, VCE=2V

3\. High isolation voltage between input and output  VISO : 5 000Vrms

4\. Low collector dark current

   ICEO: MAX. 10-6 A at VCE= 200V

5\. Recognized by UL, file No. E64380

■Applications

1\. Telephone sets, telephone exchangers

2\. Power apparatus switchboards

3\. Numerical control machines

4\. DC-DC SSRs, DC motor controllers
