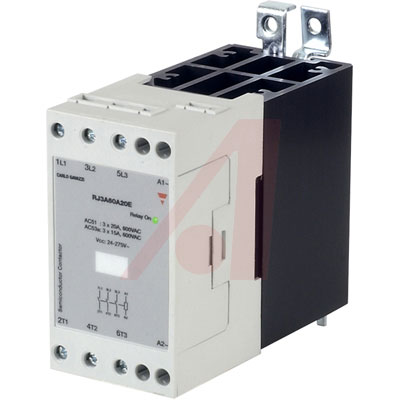

RJ3A60A20E

SSR, DIN RAIL, 660VAC, 275VAC/190VDC 20A

Rear Integrated Heatsink, Solid State Relay for Industrials

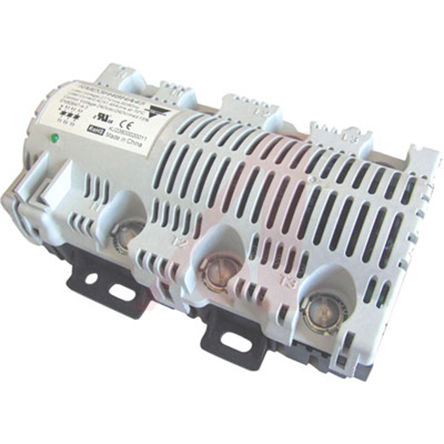

Solid state relays with heat sinks integrated directly onto the relay provide an excellent alternative to environmentally hazardous mercury relays. The IP20 touch-safe cover is easily removed to facilitate connection via ring terminals, and then the touch-safe cover can be quickly snapped back into place. Higher rated relays 75 and 90 A with integrated cooling fans are also available. Types ending with the "P" suffix feature an integrated fan and over-temperature protection. UL recognized, CSA certified and CE compliant.

* User Friendly — Just Snap onto DIN Rail

* Ideal Alternative to Mercury Relays

* One-, Two- or Three-Pole Switching

* Zero Switching for Resistive/Motor Loads

* Random Switching Available

* Built-In Snubber Network

* LED Indication

* AC and/or DC Control Voltage

* Up to 70 A Output Current

* Higher Rated Outputs Available Upon Request

* Up to 660 VAC Switching

* Up to 1200 Vp Non-Repetitive Voltage
