TN0610N3

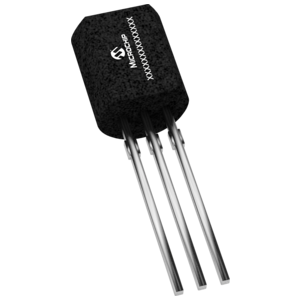

Trans MOSFET N-CH 100V 0.5A 3Pin TO-92

Low Threshold DMOS Technology

These low threshold enhancement-mode normally-off transis tors utilize a vertical DMOS structure and "s well-proven silicon-gate manufacturing process. This combination produces devices with the power handling capabilities of bipolar transistors and with the high input impedance and positive temperature coefficient inherent in MOS devices. Characteristic of all MOS structures, these devices are free from thermal runaway and thermally-induced secondary breakdown.

Features

■ Low threshold — 2.0V max.

■ High input impedance

■ Low input capacitance — 100pF typical

■ Fast switching speeds

■ Low on resistance

■ Free from secondary breakdown

■ Low input and output leakage

■ Complementary N- and P-channel devices

Applications

■ Logic level interfaces – ideal for TTL and CMOS

■ Solid state relays

■ Battery operated systems

■ Photo voltaic drives

■ Analog switches

■ General purpose line drivers

■ Telecom switches
