TSW-112-08-T-S-RA

2.54mm 方针

针座 通孔，直角 12 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 12POS 2.54MM

欧时:
.100" Terminal Strip

立创商城:
2.54mm 方针

艾睿:

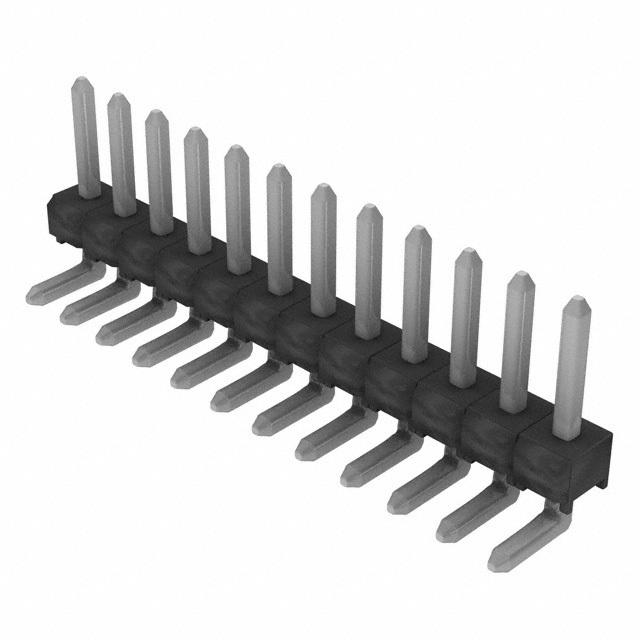

This unshrouded TSW-112-08-T-S-RA header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 12 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. TSW-112-08-T-S-RA is housed in black polyester. This product is 30.48 mm long, 3.02 mm tall and 9.9 mm deep.

安富利:
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk

Newark:
# SAMTEC  TSW-112-08-T-S-RA  Board-To-Board Connector, 2.54 mm, 12 Contacts, Header, TSW Series, Through Hole, 1 Rows
