192900-0017

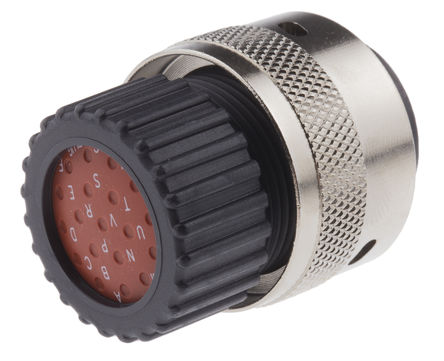

Trident Neptune Cable Connectors with Metal Coupling RingFrom ITT Cannon, the Trident connector system is designed for use in harsh environments. With membrane wire seals and a strong metal coupling ring, this connector is ideal for use in outdoor electronics and automobile applications.### 注Cable mount plugs only mate with panel sockets and cable mount sockets only mate with panel plugs. Plugs accept pin contacts, Sockets accept socket contacts. ### ITT Neptune### NeptuneBased on Trident Ringlok series, the Neptune range combines power and signal contacts. Widely used in automotive, marine and process control industries, they feature a strong bayonet coupling system with standard and reversed pin/socket combinations. A wide selection of backshell accessories, rear housings and dust caps are available.,To maintain IP67 rating the rear of the connectors have a rubber seal which is pierced upon contact insertion. The seal is held in place by a screw ring as supplied which may be replaced with the appropriate size backshell. For IP67 rating to be maintained, wire insulation diameters should be within the following diameters: Signal wires: 1.7 to 2.7mm, Power wires : 2.7 to 4.0mm.,Number of contacts shown as power/signal eg 2//13.Current Rating single contact | 13A signal contacts, 30A power contacts ---|--- Voltage Rating | 30V Contact Resistance | 5mΩ max Test Voltage | 2000V rms Insulation Resistance | 5000MΩ min. at 500V dc Operating Temperature | -55 → +120ºC Seals | Rubber Housings | Nylon to UL94 V-0 Coupling Rings | Nickel plated brass or plastic version Contacts | High conductivity copper alloy Contact Plating | Gold contact area Mating Cycles | Dimensions mm ---   | Shell 24 | Shell 16 | Shell 14 Dia mm | 43.2 | 30.5 | 28.5 Hole dia. to flat | 41.5 | 28.0 | 24.5

Trident Neptune 电缆，带金属耦合环

的 Trident 连接器系统专门设计用于在恶劣环境中使用。此连接器配有薄膜电线密封和坚固的金属耦合环，特别适用于室外电子产品和汽车应用。

### 注

电缆安装插头仅与面板插座配用，电缆安装插座仅与面板插头配用。插头接受引脚触点，插座接受插座触点。

### Neptune

基于 Trident Ringlok 系列，该 Neptune 系列产品组合了电源和信号触点。它们可广泛用于汽车、船舶和过程控制行业，具有坚固的卡口连接系统，配有标准和反向的引脚/插座组合。提供多种底壳附件、后部外壳和防尘盖供您选择。为了保持 IP67 等级，连接器的后部具有穿透于触点插入的橡胶密封。该密封通过螺钉环（随附，可用合适大小的底壳进行更换）固定到位。为了保持 IP67 等级，电线绝缘直径应在以下直径范围内选择：信号线：1.7 至 2.7 mm，电源线：2.7 至 4.0 mm。按照电源/信号显示触点数量，例如 2//13。
