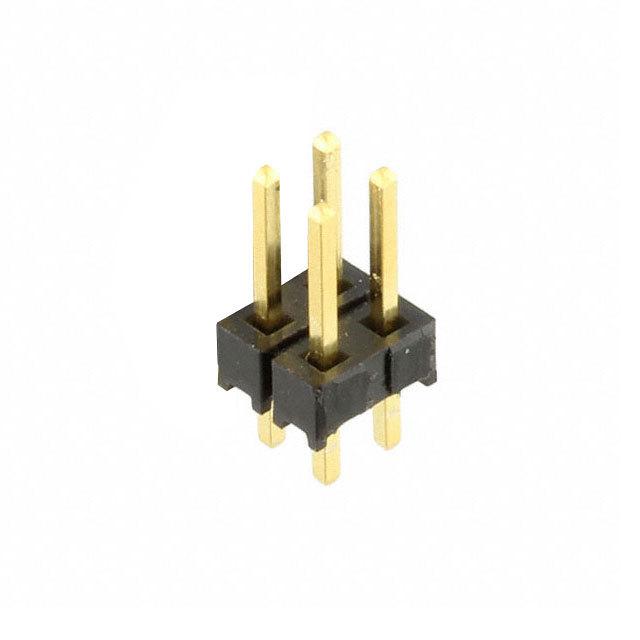

TSW-102-26-G-D

SAMTEC TSW-102-26G-D Board-To-Board Connector, 2.54mm, 4Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 4 位置 0.100"（2.54mm）

欧时:
through-hole hdr strips for 0.100 pit

得捷:
CONN HEADER VERT 4POS 2.54MM

艾睿:
Use this unshrouded TSW-102-26-G-D header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. TSW-102-26-G-D is housed in black polyester. It uses the solder termination method. This product is 5.08 mm long, 8.38 mm tall and 5.08 mm deep. This connector has an operating temperature of -55 to 125 °C.

Newark:
# SAMTEC  TSW-102-26-G-D  Board-To-Board Connector, 2.54 mm, 4 Contacts, Header, TSW Series, Through Hole, 2 Rows

Electro Sonic:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole
