CFL3T

EMI/RFI 屏蔽外壳一系列外壳，专为需要 EMI/RFI 屏蔽的应用而设计，适用于低频和高频。 有三种型号：标准屏蔽外壳，带有锯齿状盖子- 开放式机架，带有两个盖子，用于从上面和下面接触组件 \- 用于在印刷电路上安装的框架，带有锯齿状盖子。 技术参数 --- 材料 |   \- 框架和外壳： | 明亮低碳钢，0.9 mm，符合 BS 1449 标准 \- 盖子： | 明亮低碳钢，24 SWG，符合 BS 1449 标准 表面： | 60 // 40 锡铅合金层涂层，符合 BS 219 标准 电阻率： | 20 x 10-6 Ω / 方形 库存号 | 尺寸 mm |   |   ---|---|---|--- 号 | 切割 | 宽度 | 深度 **外壳，带有锯齿状盖子** |   |   |   627-6304 | 50 | 50 | 15 627-6310 | 75 | 50 | 25 627-6332 | 100 | 50 | 35 627-6326 | 160 | 100 | 50 **框架，带有锯齿状盖子** |   |   |   627-6348 | 50 | 50 | 15 627-6354 | 100 | 50 | 25 627-6360 | 160 | 100 | 35 627-6376 | 220 | 100 | 50 **用于印刷电路板安装的框架，带有锯齿状盖子** |   |   |   627-6398 | 20 | 20 | 10 627-6382 | 50 | 25 | 15 627-6405 | 75 | 50 | 25 627-6411 | 100 | 50 | 25 ### 机柜应用（屏蔽）

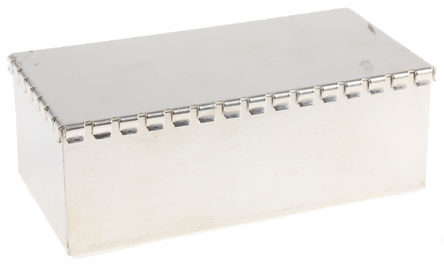

The is a metallic Enclosure made of bright mild steel with bright acid tin finish. It is a standard and custom RFI/EMI can offers good attenuation and accessibility where screening of complete boards or circuits is required. Lid fingering clearance selective fingers can be omitted for clearance around components mounted through the frame wall.

.

Removable fingered lid - giving easy access and excellent attenuation

.

Component/PCB locations - lancings or brackets can be specified to act as guides or supports

.

Butt jointed corners - bright acid tin finish

.

Internal dividers - for discrete screening within the can

.

Holes, brackets, cut outs, lid captivation can be incorporated during manufacture
