CC1110DK-MINI-868
CC1110 Mini Development Kit 868/915MHz

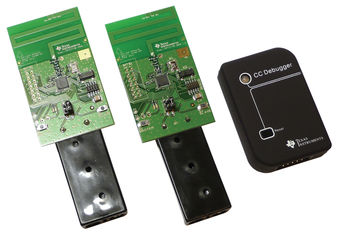

The is a CC1110 mini development kit, an inexpensive and flexible development platform for CC1110Fx RF system on chip solution. The CC1110Fx features a 26MHz single cycle 8051 microcontroller with integrated CC1101 RF transceiver, FLASH, RAM, 5 DMA channels, ADC, PWM, UART, SPI, I2S, four timers, and 21 GPIO pins. This kit is all you need to build a prototype of a wireless sensor node application. The CC1110 on the SmartRFCC1110 target board is pre-programmed with a link test which operates at 868.3 MHz, and uses GFSK modulation and a bit rate of 2.4kbps. The link test runs a point to point communication between a slave and a master node based on the Simplici 1.1.0 protocol.
- .
- PCB antenna pre tested for ETSI and FCC compliance
- .
- Battery holders for 2x AAA or 1x CR2032 coin cell operation
- .
- Footprint for 2.54mm connector connected to CC1110Fx GPIO pins
- .
- Two buttons & two LEDs for simple application development
- .
- Pre programmed with link test for RF range measurement
- .
- SmartRF studio and packet packet Sniffer runs on the board in combination with the CC Debugger
