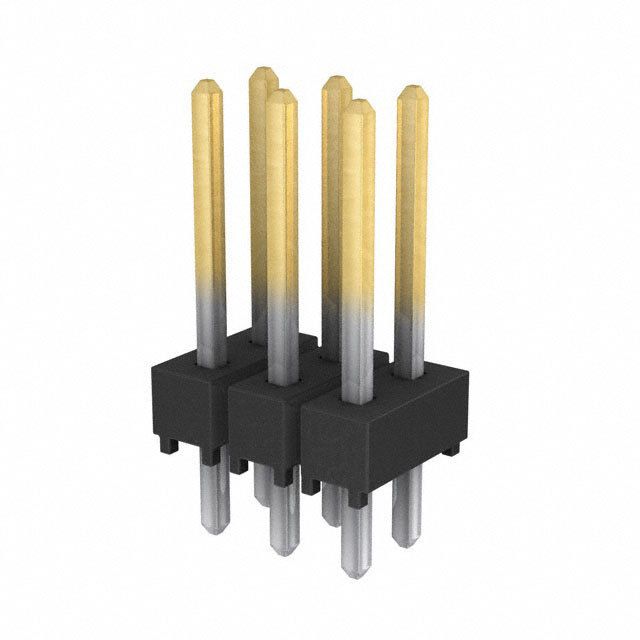

TSW-103-14-S-D

2.54mm 方针

Connector Header Through Hole 6 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 6POS 2.54MM

欧时:
Classic PCB HDR Strips 0.100"

立创商城:
2.54mm 方针

艾睿:
Thanks to Samtec&s;s unshrouded TSW-103-14-S-D header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product is 7.62 mm long, 10.67 mm tall and 5.08 mm deep. TSW-103-14-S-D is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-103-14-S-D  .025 Sq. Terminal Strips
