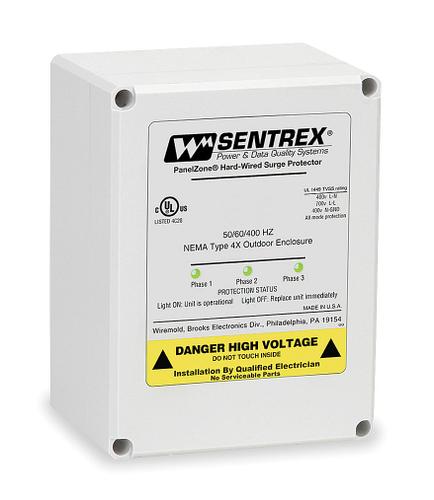

PA120Y

Surge Protector; 120VAC; 80kA; -20dBMax.; 120mm L x 90mm W x 160mm H

Panel surge protection for residential and light commercial applications. Mounts at the breaker panel to provide surge protection for all equipment fed from the panel. Or mount at larger, permanently wired equipment e.g. elevator motor, HVAC to provide suppression as close to these systems as possible. Single-phase protects a home or small office, and Three-phase units guard against surges generated by Three-phase manufacturing equipment.

**Features:**

* Water-Tight Plastic Enclosure

* Fire and Corrosion Resistant

* NEMA 1, 2, 3, 3S, 4, 4X, 12 and 13 Rated

* 3⁄4" Conduit Connection

* 36" 14 AWG Wire Leads

* Wall Mounting Bracket Standard

* Protection Indicator Light Per Phase

* Indoor or Outdoor Use

* EFI/RFI Noise Filtering

* 80,000 A Maximum Surge Current

* 480 V Peak Clamping Voltage

* –40°C to +55°C Operating Temperature

* UL 1449 Second Edition Listed to U.S. and Canadian Standards

* Ten-Year Warranty
