66.9426-150-21

MULTI-CONTACT  66.9426-150-21  测试线, 测试尖头探头至4mm香蕉插头, 黑色, 5 kV, 10 A, 1.5 m

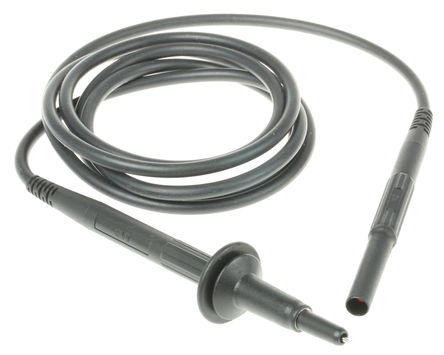

The is a highly flexible Test Lead with test tip probe to 4mm shrouded banana plug connection. It features that one end with Ø4mm test probe with spring-loaded Multilam, the other end with in-line Ø4mm Multilam plug with rigid insulating sleeve. It is supplied with protective cap.

.

TPE Insulation

欧时:
5kV Probe Lead XHL-50001.5m long highly flexible test lead. One end has Ø 4mm test probe with spring loaded Multilam™, and the other end has in-line Multilam™ plug with rigid insulating sleeve. Supplied with protective cap. Cable insulation is thermoplastic elastomer TPE. It is environmentally friendly halogen free, with extremely high insulation resistance 1.5x1014Ω.Voltage rating 5kV ie. Output voltage of Test instrument Current rating 10A on 4mm probe tip### 注For safety reasons, the lead is only compatible with XHB-5000 panel socket.

Newark:
# MULTI-CONTACT  66.9426-150-21  Test Lead, Test Tip Probe to 4mm Banana Plug, Black, 5 kV, 10 A, 1.5 m
