MAX6314US26D1-T

电压检测器 Voltage Detector

General Description

The MAX6314 low-power CMOS microprocessor µP supervisory circuit is designed to monitor power supplies in µP and digital systems. The MAX6314’s RESET output is bidirectional, allowing it to be directly connected to µPs with bidirectional reset inputs, such as the 68HC11. It provides excellent circuit reliability and low cost by eliminating external components and adjustments. The MAX6314 also provides a debounced manual reset input.

Features

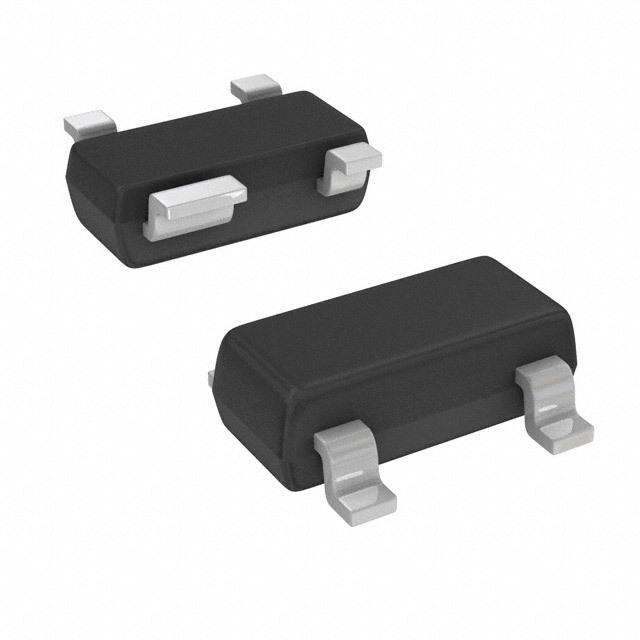

♦ Small SOT143 Package

♦ RESET Output Simplifies Interface to Bidirectional Reset I/Os

♦ Precision Factory-Set VCC Reset Thresholds: 100mV Increments from 2.5V to 5V

♦ ±1.8% Reset Threshold Accuracy at TA = +25°C

♦ ±2.5% Reset Threshold Accuracy Over Temp.

♦ Four Reset Timeout Periods Available: 1ms, 20ms, 140ms, or 1120ms minimum

♦ Immune to Short VCC Transients

♦ 5µA Supply Current

♦ Pin-Compatible with MAX811

Applications

Computers

Controllers

Intelligent Instruments

Critical µP and µC Power Monitoring

Portable/Battery-Powered Equipment
