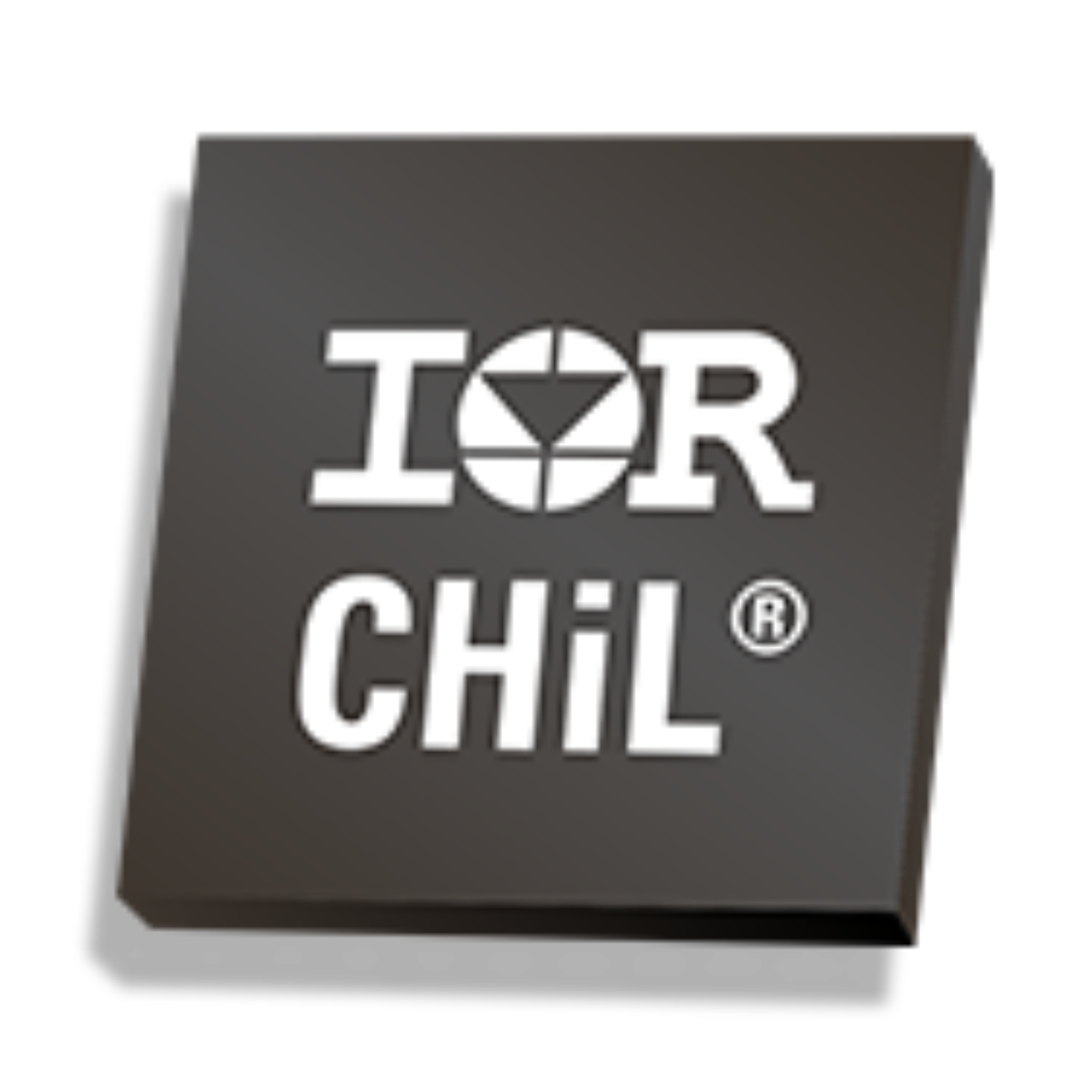

CHL8102-00CRT

Controller 40Pin QFN EP T/R

Benefits:

.

Dual output 2/3/4+1 phase PWM Controller

.

Easiest layout and fewest pins in the industry

.

I2C interface for configuration and telemetry

.

Overclocking support with I2C voltage override and Vmax setting

.

Flexible I2C bus security features

.

Independent loop switching frequencies from 200kHz to 1.2MHz per phase

.

CHiL Efficiency Shaping with Dynamic Phase Control DPC

.

1-phase and Active Diode Emulation modes for light load efficiency

.

CHiL Adaptive Transient Algorithm ATA on both loops minimizes output bulk capacitors and system cost

.

Per-Loop Fault Protection: OVP, UVP, OCP

.

Multiple time programmable MTP memory for custom configuration

.

Compatible with CHiL ATL and 3.3V tri-state Drivers
